Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Intake Manifold Cover - Remove Intake Manifold Cover Replacement

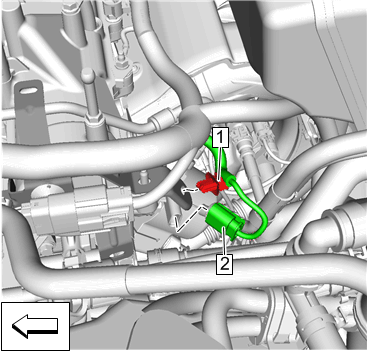

Retainer (1) - Unclip

Fig 1: Retainer
Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor Electrical Connector (2) - Disconnect

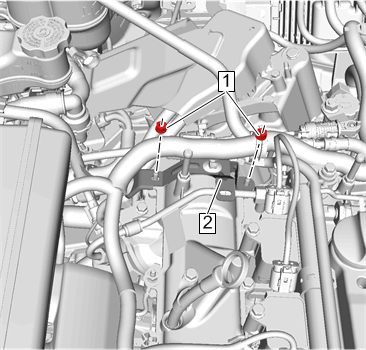

Engine Wiring Harness Bracket Nut (1) - Remove [2x]

Fig 2: Engine Wiring Harness Bracket Nut
Courtesy of GENERAL MOTORS COMPANY
Engine Wiring Harness Bracket (2) - Reposition

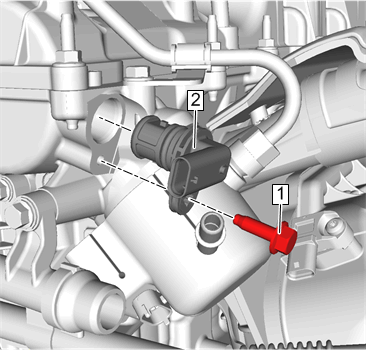

Camshaft Position Sensor Bolt (1) - Remove

Fig 3: Camshaft Position Sensor Bolt
Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor (2) - Remove
NOTE: Inspect the O-ring and replace if necessary.
