Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Camshaft Position Actuator Solenoid Valve (2) - Install

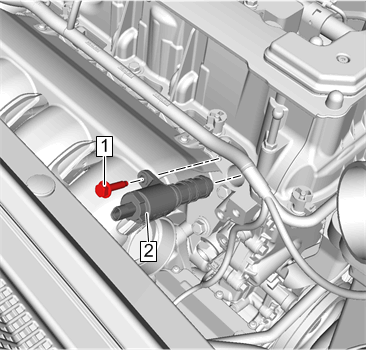

Fig 1: Camshaft Position Actuator Solenoid Valve Bolt
Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Actuator Solenoid Valve Bolt (1) - Install and tighten 10 N.m (89 lb in)
CAUTION: Refer to Fastener Caution .
Electrical Connector (1) @ Camshaft Position Actuator Solenoid Valve (2) - Connect

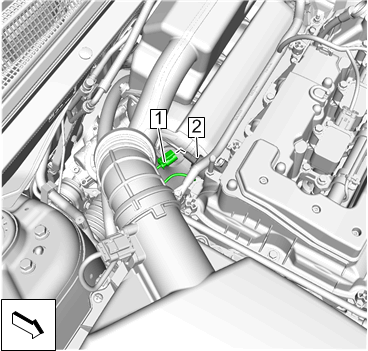

Fig 2: Camshaft Position Actuator Solenoid Valve
Courtesy of GENERAL MOTORS COMPANY
Intake Manifold Cover - Install Intake Manifold Cover Replacement
