Special Tools
WARNING: This page is about a different variant/trim than selected.
| Illustration | Tool Number/Description |
|---|---|
| EL-48264-A Battery Lift Fixture |
|
| EL-48264-50 Battery Pack Lift Adapters |
|
| EL-48571-A HV Pinout Box |
|

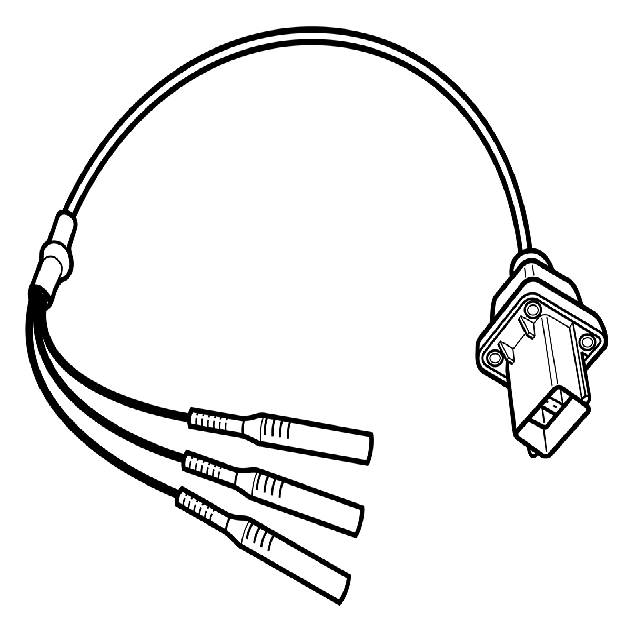

| EL-48571-45 Pinout Box Adapter Harness |
|
| EL-48900-A HV Safety Kit |
|

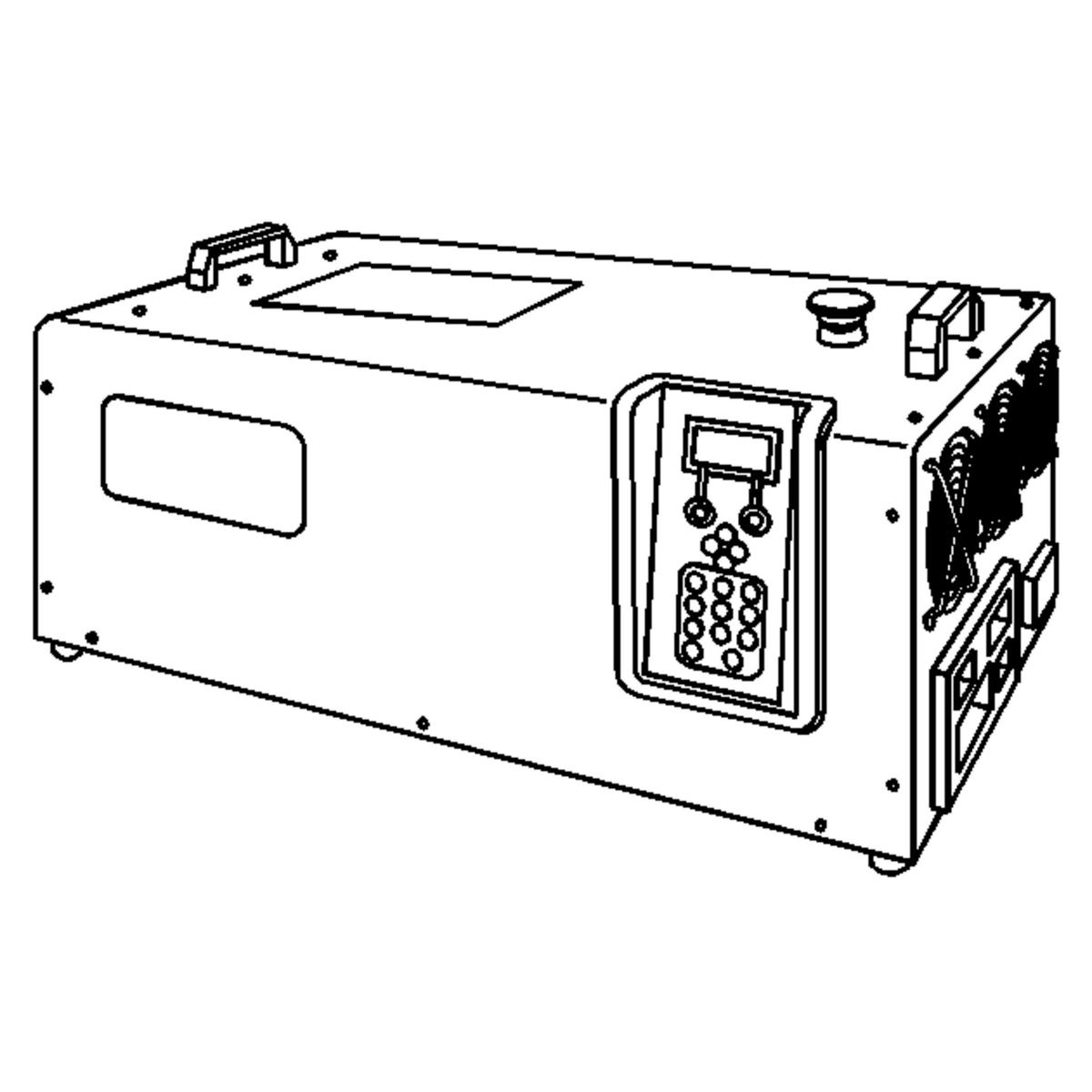

| EL-50332 Battery Discharge/Load Leveling Tool |
|

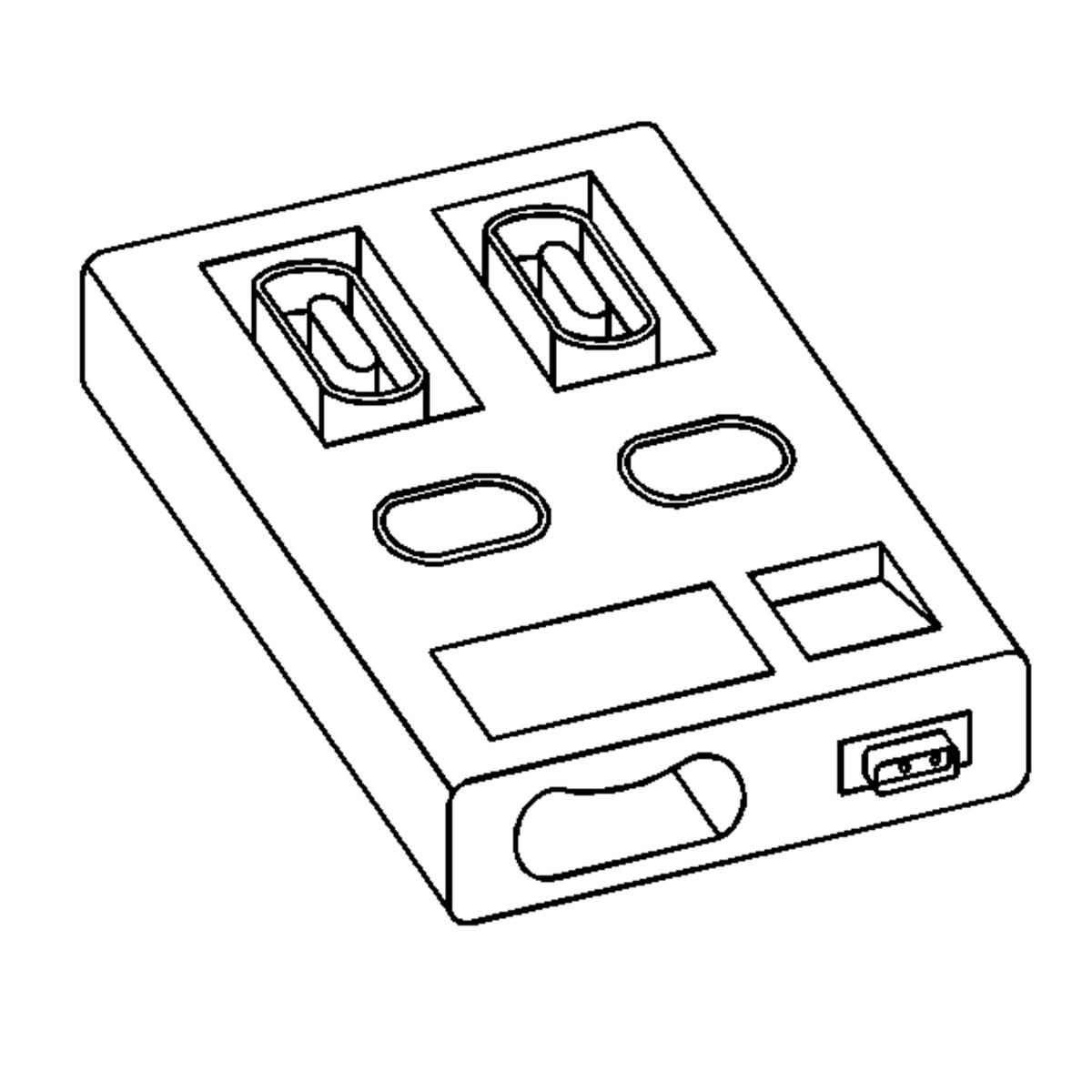

| EL-50332-105 Universal Fuse Box |
|
| EL-50332-110 Vehicle Interface Module |
|
| EL-50332-120 High Voltage Interface Cable |
|

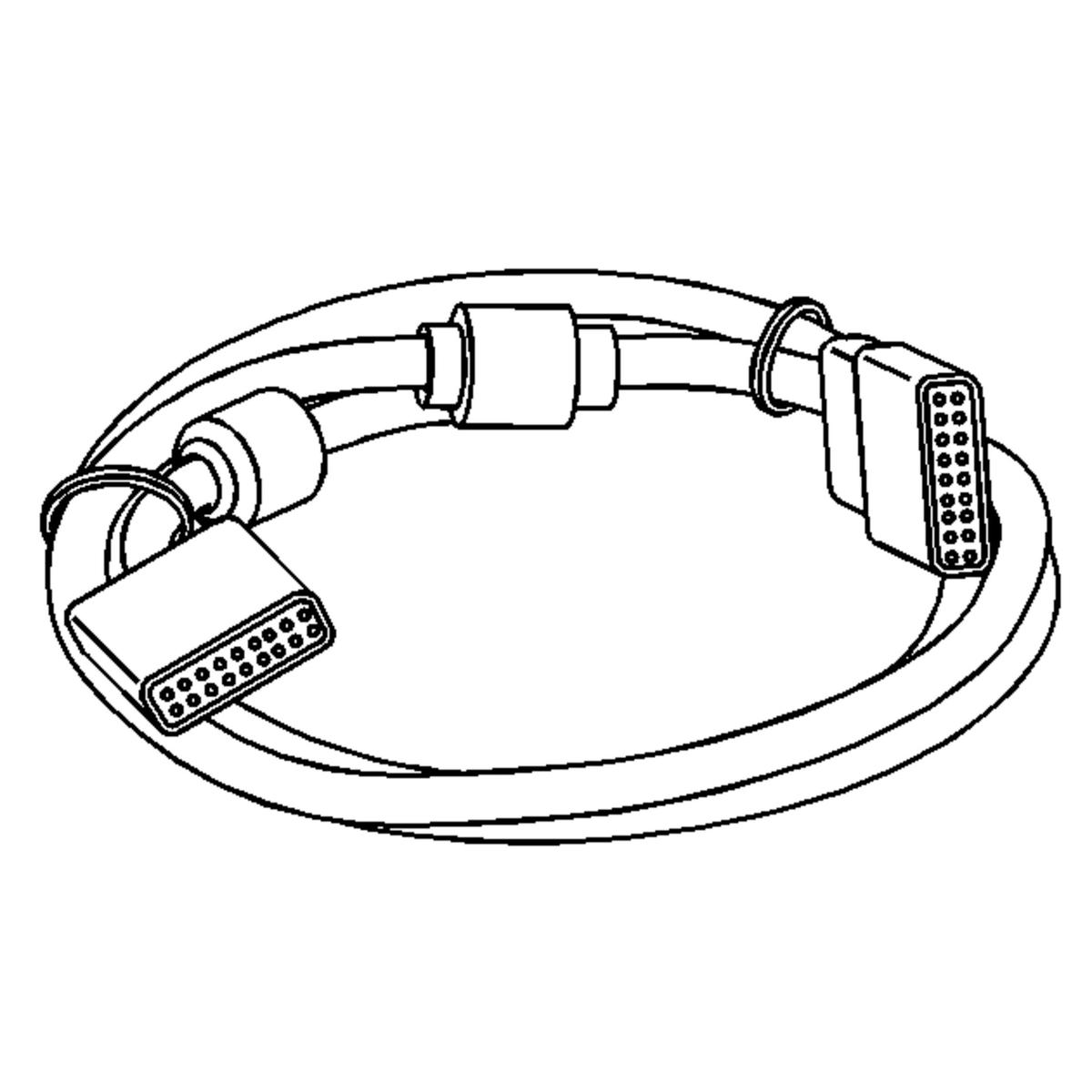

| EL-50332-125 Vehicle Interface Module Low Voltage 24-Pin Cable |
|

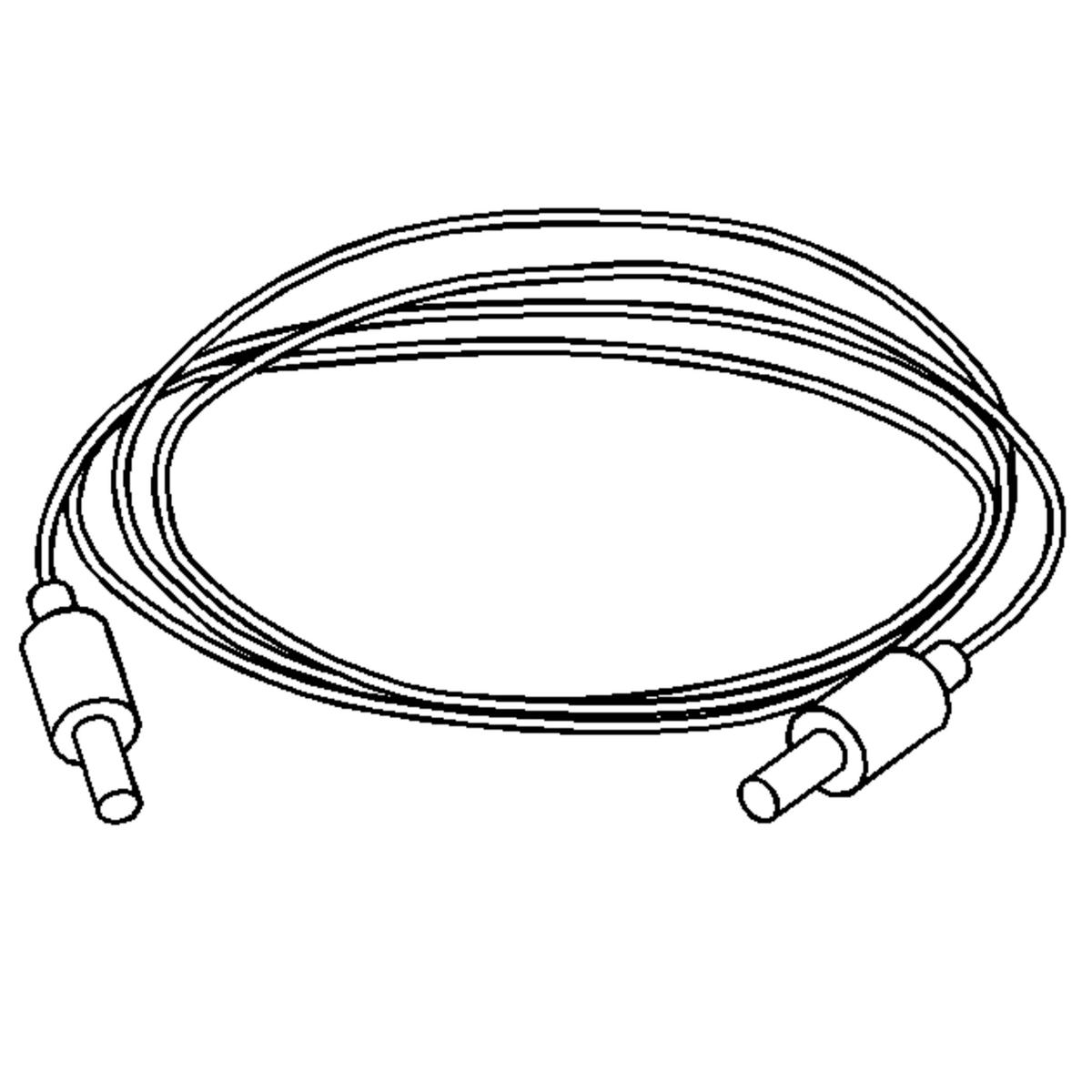

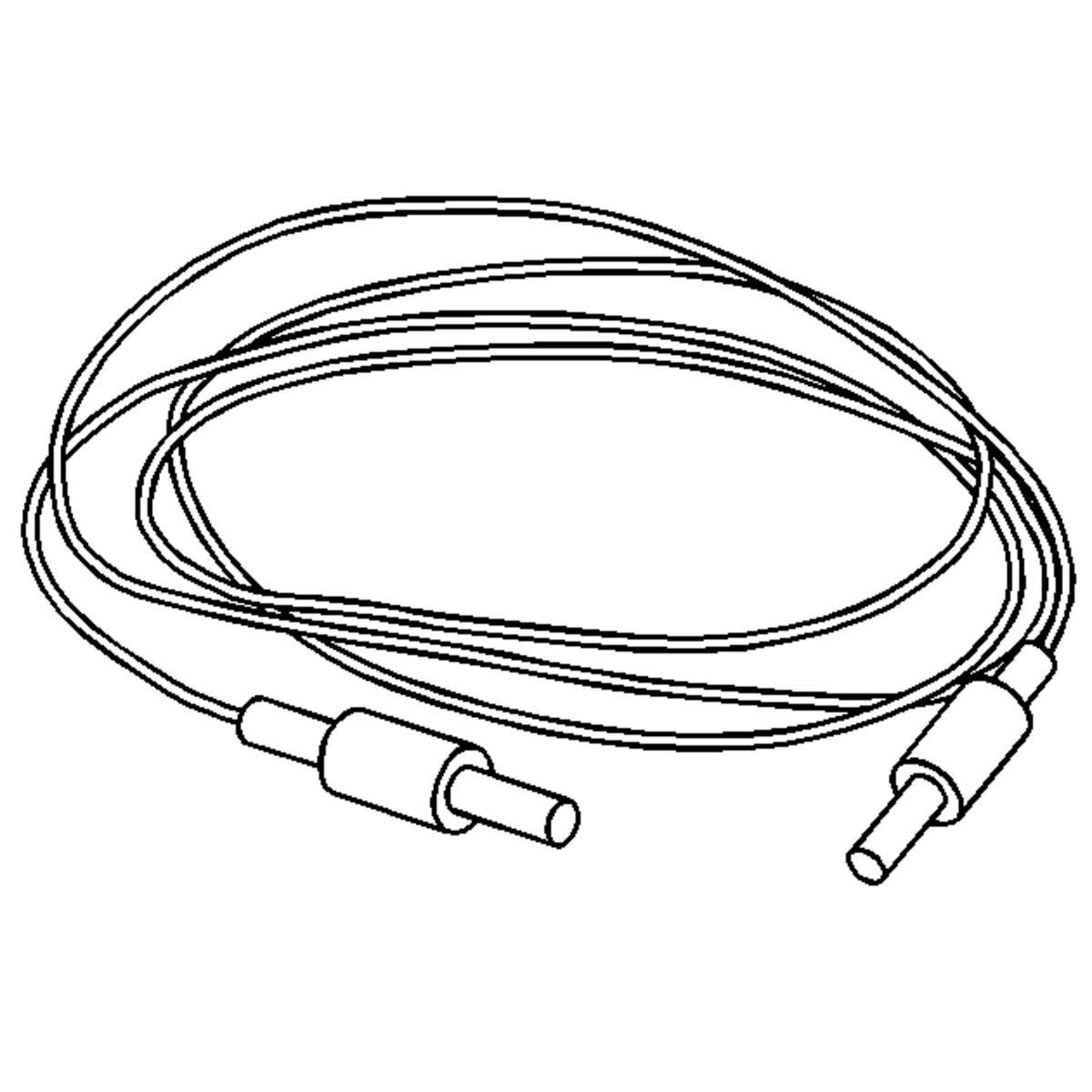

| EL-50332-145 Black HV Banana Jack Cable |
|
| EL-50332-150 Red HV Banana Jack Cable |
|
| EL-50332-155 Green HV Banana Jack Cable |
|

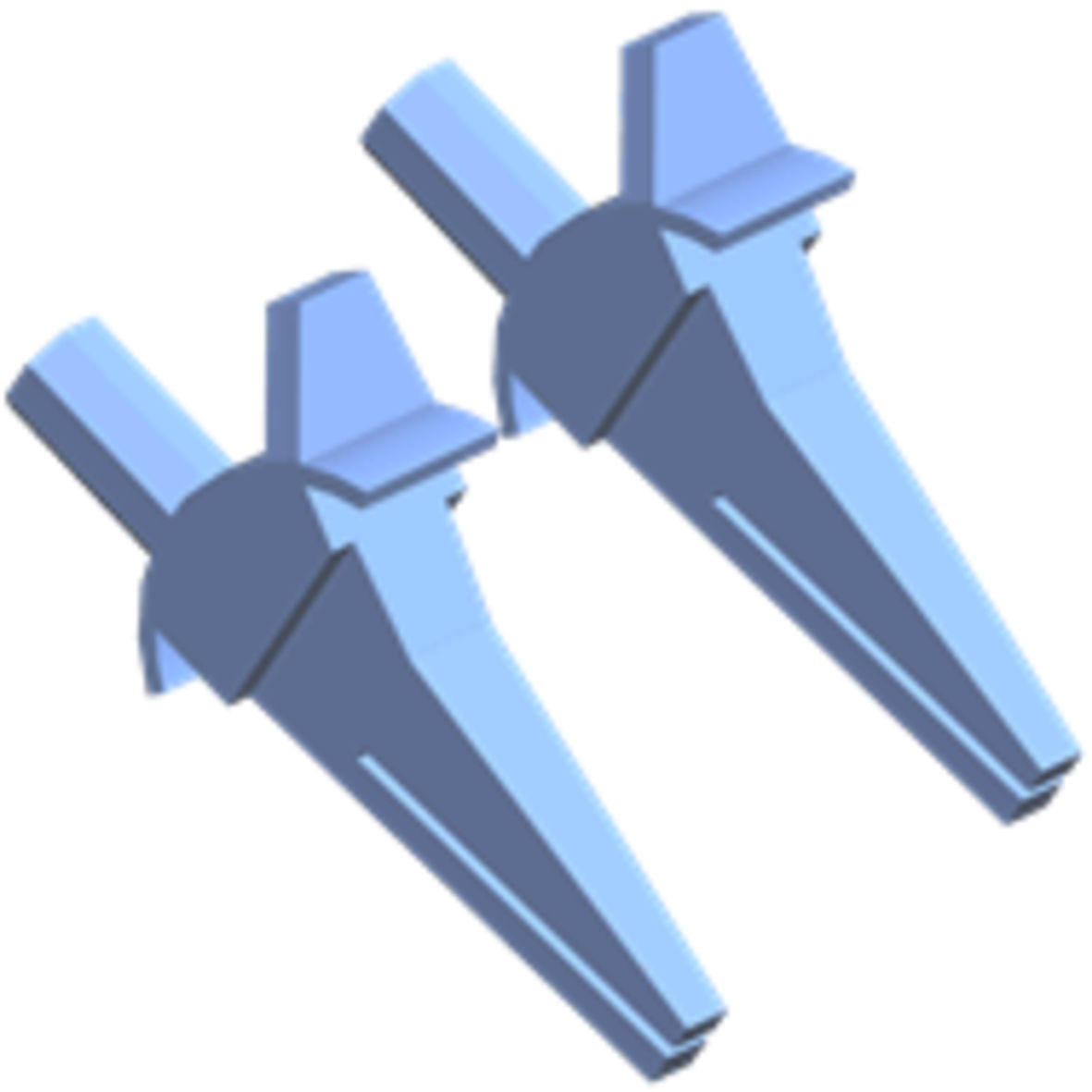

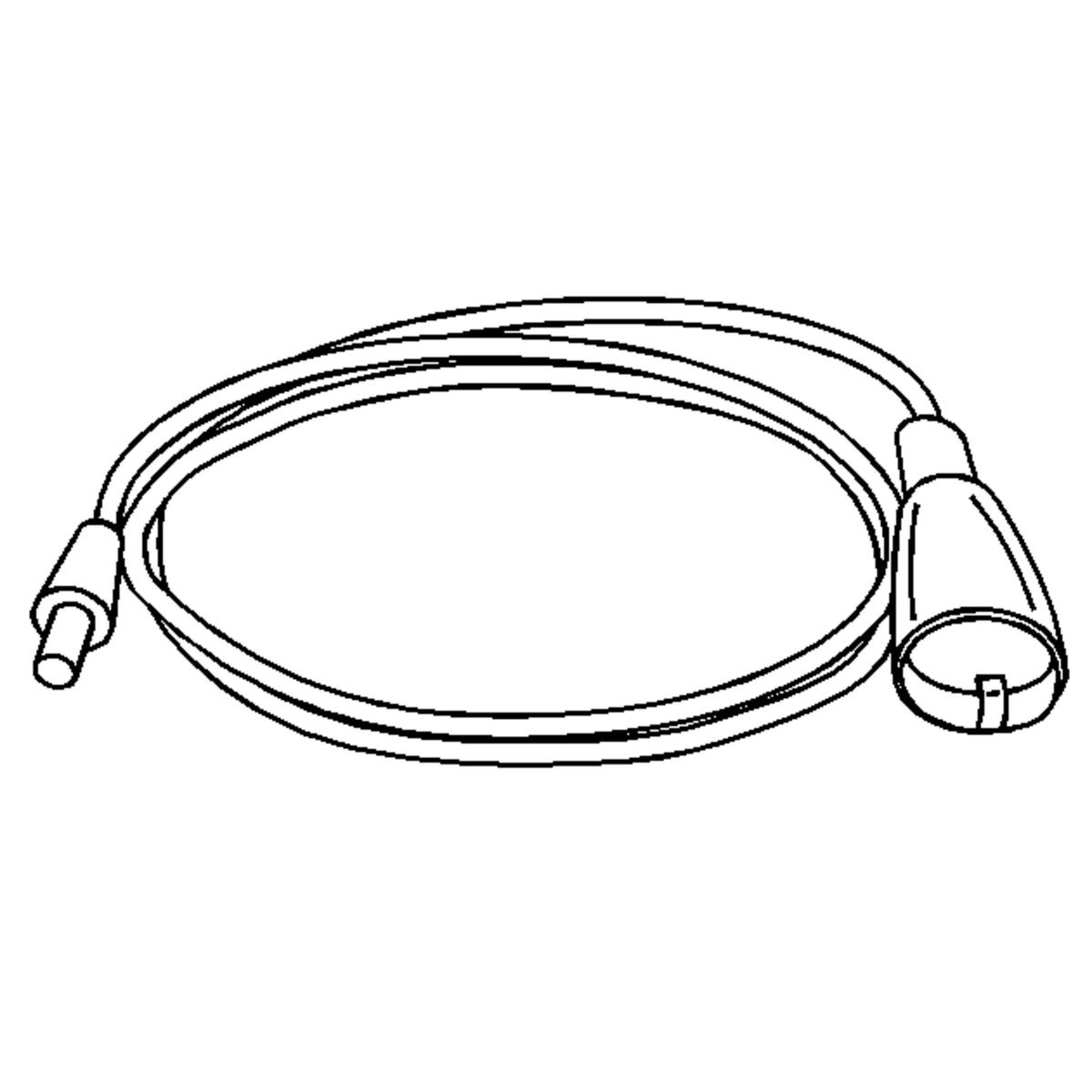

| EL-50332-170 High Voltage Alligator Clamps |
|

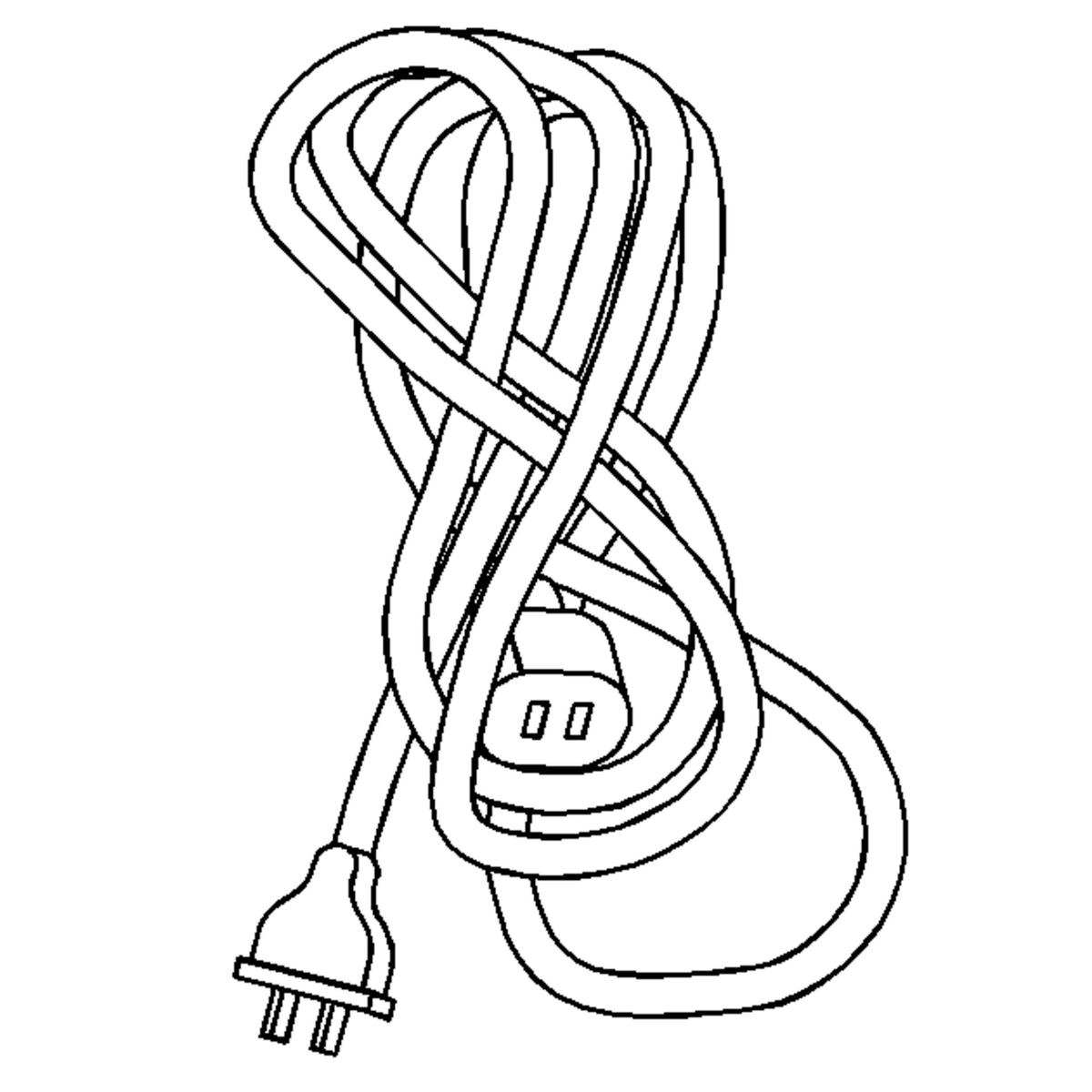

| EL-50332-175 120 V Power Cable |
|
| EL-50332-210 HPCM2 Low Voltage Adapter Cable |
|
| EL-50332-265 14 V Accessory Power Module Harness Interface Cable |
|
| EL-50772 Fluke 1587 Mega OHM Meter |
