Section 4 (Hybrid/EV Energy Storage System)
>>
Schematic Wiring Diagrams
>>
Hybrid/EV Energy Storage Wiring Schematics
>>
Hybrid/EV Battery Sections 1 and 2
Hybrid/EV Battery Sections 1 and 2
WARNING:
This page is about a different variant/trim than selected.

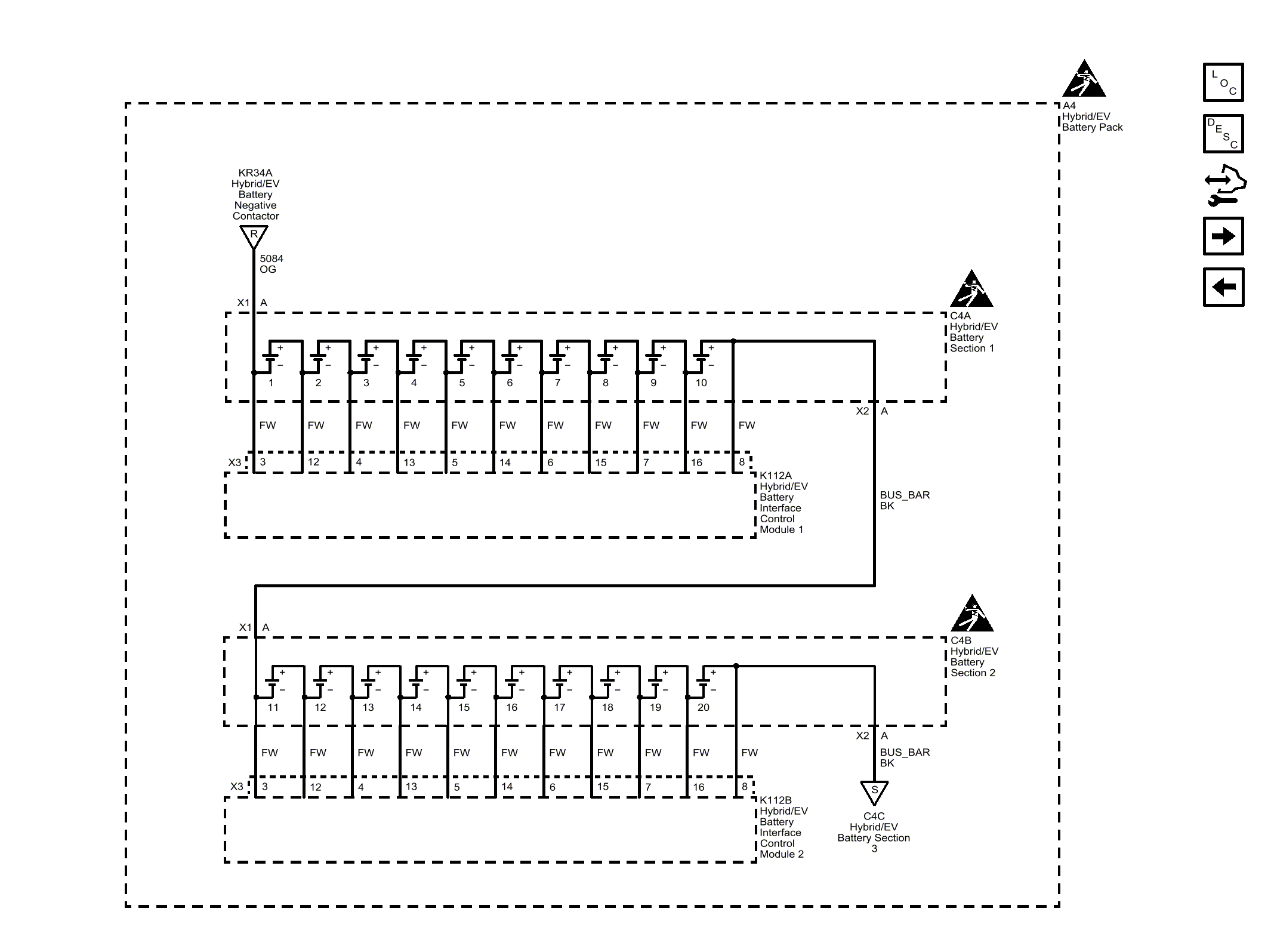

Fig 1: Hybrid/EV Battery Sections 1 and 2
Courtesy of GENERAL MOTORS COMPANY
