Installation Procedure

WARNING: This page is about a different variant/trim than selected.

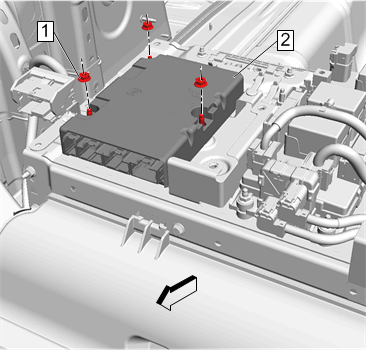

Hybrid Powertrain Control Module (2) - Install

Fig 1: Hybrid Powertrain Control Module Mounting Nut
Courtesy of GENERAL MOTORS COMPANY
Hybrid Powertrain Control Module Mounting Nut (1) - Install and tighten [3x] 9 N.m (80 lb in)
CAUTION: Refer to Fastener Caution

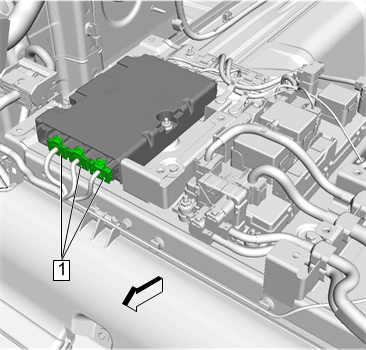

Electrical Connector (1) - Connect [4x]

Fig 2: Electrical Connector
Courtesy of GENERAL MOTORS COMPANY

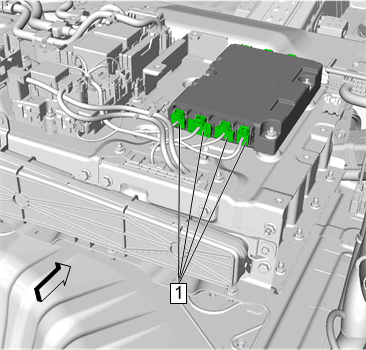

Electrical Connector (1) - Connect [3x]

Fig 3: Electrical Connector
Courtesy of GENERAL MOTORS COMPANY

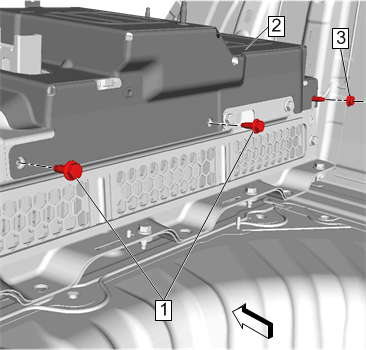

High Voltage Battery Cover (2) - Install High Voltage Battery Cover Replacement

Fig 4: High Voltage Battery Cover
Courtesy of GENERAL MOTORS COMPANY

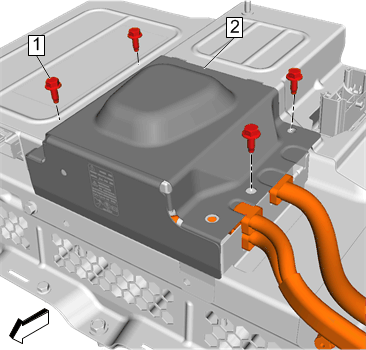

High Voltage Battery Positive and Negative Cable Cover (2) - Install High Voltage Battery Positive and Negative Cable Cover Replacement

Fig 5: High Voltage Battery Positive and Negative Cable Cover
Courtesy of GENERAL MOTORS COMPANY
Enable the high voltage system. Refer to High Voltage Enabling
Reprogram the hybrid powertrain control module 2, refer to Control Module References
