Installation Procedure

WARNING: This page is about a different variant/trim than selected.

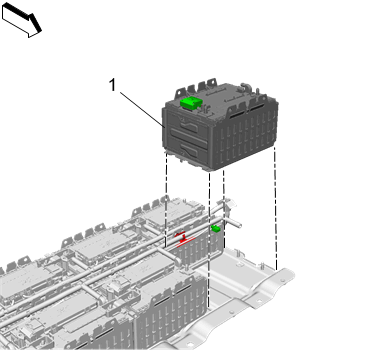

Cell Battery Module (1) - Install

Fig 1: Cell Battery Module
Courtesy of GENERAL MOTORS COMPANY

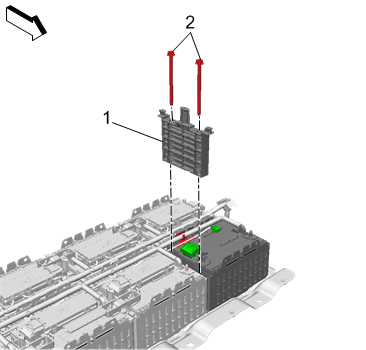

Battery Hold Down Retainer (1) - Install

Fig 2: Battery Hold Down Retainer
Courtesy of GENERAL MOTORS COMPANY
Battery Hold Down Bolt (2) - Install and tighten [2x] 9 N.m (80 lb in)
CAUTION: Refer to Fastener Caution

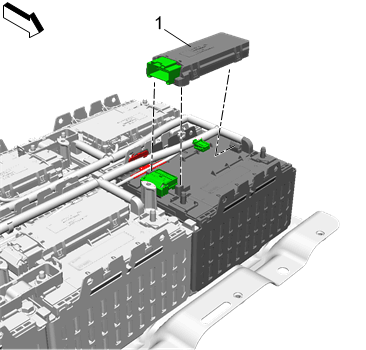

High Voltage Battery Interface Control Module (1) - Install

Fig 3: High Voltage Battery Interface Control Module
Courtesy of GENERAL MOTORS COMPANY

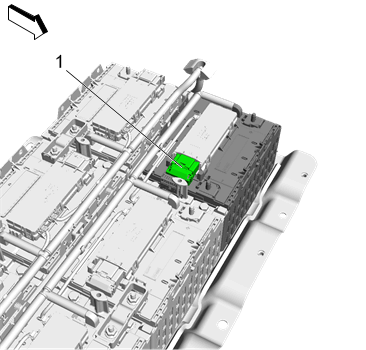

Connect the ribbon connector. (1)

Fig 4: Ribbon Connector
Courtesy of GENERAL MOTORS COMPANY

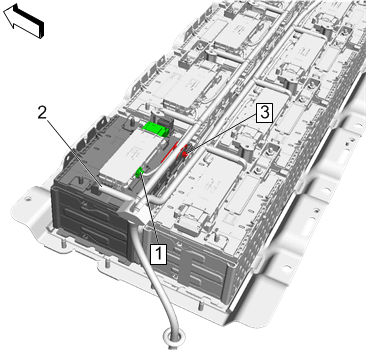

Electrical Connector - (1) Connect

Fig 5: Battery Vent Tube
Courtesy of GENERAL MOTORS COMPANY
Battery Vent Tube (2) - Connect
Retainer Clip (3) - Engage

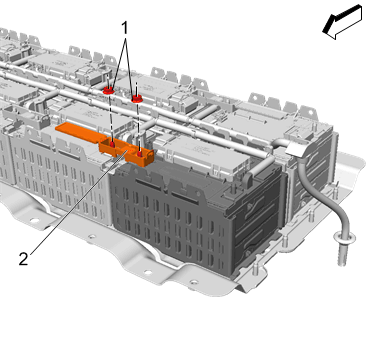

High Voltage Bus Bar (2) - Install

Fig 6: High Voltage Bus Bar Fastener
Courtesy of GENERAL MOTORS COMPANY
High Voltage Bus Bar Fastener (1) - Install and tighten [2x] 9 N.m (80 lb in)
Perform Hybrid/EV battery cell balancing, refer to Hybrid/EV Battery Cell Balancing
Battery Cooling Air Inlet Duct - Front (2) - Install

Fig 7: Battery Cooling Air Inlet Duct -- Front
Courtesy of GENERAL MOTORS COMPANY
Battery Cooling Air Inlet Duct - Rear (1) - Install

Fig 8: Battery Cooling Air Inlet Duct -- Rear
Courtesy of GENERAL MOTORS COMPANY
Battery Hold Down Retainer - Right Side Panel (3) - Install Battery Hold Down Retainer Replacement (Right Side Panel)

Fig 9: Wiring Harness Retainer
Courtesy of GENERAL MOTORS COMPANY
Battery Hold Down Retainer - Left Side Panel (3) - Install Battery Hold Down Retainer Replacement (Left Side Panel)

Fig 10: Battery Hold Down Retainer -- Left Side Panel
Courtesy of GENERAL MOTORS COMPANY
Battery Cover - Front (3) - Install Battery Cover Replacement (Front Panel)

Fig 11: Battery Cover -- Front
Courtesy of GENERAL MOTORS COMPANY
Battery Cover - Back (2) - Install Battery Cover Replacement (Back Panel)

Fig 12: Battery Cover -- Back
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Right Side (1) - Install High Voltage Battery Tray Reinforcement Replacement (Right Side)

Fig 13: High Voltage Battery Tray Reinforcement -- Right Side
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Left Side (1) - Install High Voltage Battery Tray Reinforcement Replacement (Left Side)

Fig 14: High Voltage Battery Tray Reinforcement -- Left Side
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery (1) - Install High Voltage Battery Replacement and Shipping Preparation

Fig 15: High Voltage Battery
Courtesy of GENERAL MOTORS COMPANY
Enable the high voltage system. Refer to High Voltage Enabling
