Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Battery Cover (2) - Install

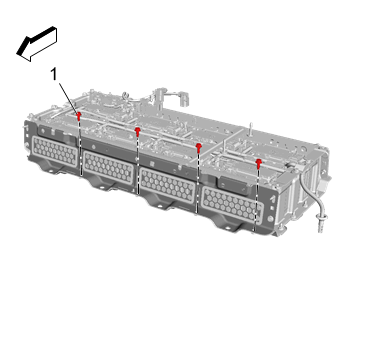

Fig 1: Battery Cover -- Front
Courtesy of GENERAL MOTORS COMPANY
Battery Cover Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
CAUTION: Refer to Fastener Caution
Battery Cover Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)

Fig 2: Battery Cover Bolt
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Right Side (1) - Install High Voltage Battery Tray Reinforcement Replacement (Right Side)

Fig 3: High Voltage Battery Tray Reinforcement -- Right Side
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Left Side (1) - Install High Voltage Battery Tray Reinforcement Replacement (Left Side)

Fig 4: High Voltage Battery Tray Reinforcement -- Left Side
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Cover (2) - Install High Voltage Battery Cover Replacement

Fig 5: High Voltage Battery Cover
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery (1) - Install High Voltage Battery Replacement and Shipping Preparation

Fig 6: High Voltage Battery
Courtesy of GENERAL MOTORS COMPANY
Enable the high voltage system. Refer to High Voltage Enabling
