Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Battery Cover (2) - Install

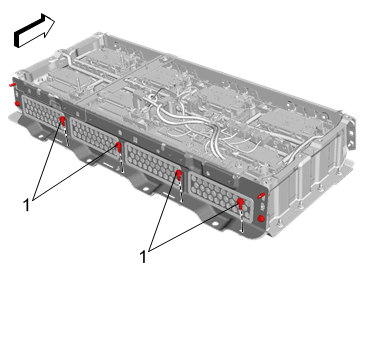

Fig 1: Battery Cover -- Back
Courtesy of GENERAL MOTORS COMPANY
Battery Cover Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)
CAUTION: Refer to Fastener Caution
Battery Cover Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)

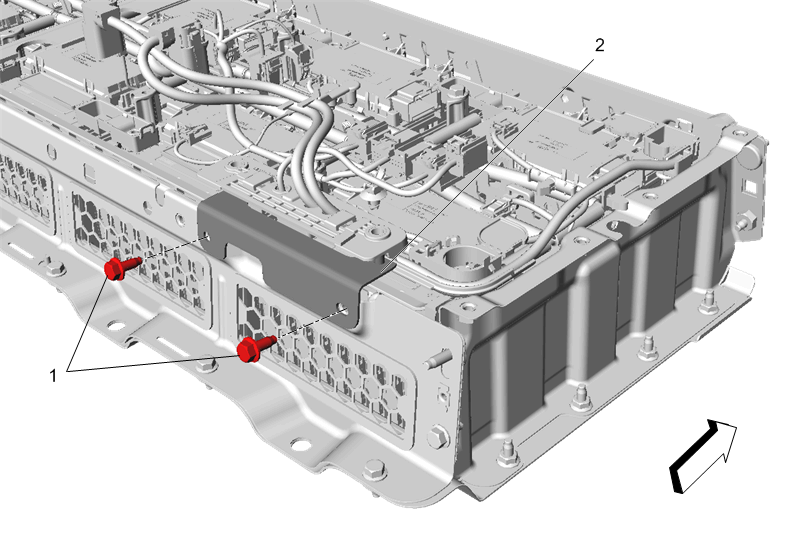

Fig 2: Battery Cover Bolt
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Cover Reinforcement (2) - Install High Voltage Battery Cover Reinforcement Replacement

Fig 3: High Voltage Battery Cover Reinforcement
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Right Side (1) - Install High Voltage Battery Tray Reinforcement Replacement (Right Side)

Fig 4: High Voltage Battery Tray Reinforcement -- Right Side
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Left Side (1) - Install High Voltage Battery Tray Reinforcement Replacement (Left Side)

Fig 5: High Voltage Battery Tray Reinforcement -- Left Side
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery (1) - Install High Voltage Battery Replacement and Shipping Preparation

Fig 6: High Voltage Battery
Courtesy of GENERAL MOTORS COMPANY
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
Enable the high voltage system. Refer to High Voltage Enabling
