Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. With the aid of a second technician, install the high voltage battery positive and negative cable, along with the battery positive cable, to the vehicle. (1)

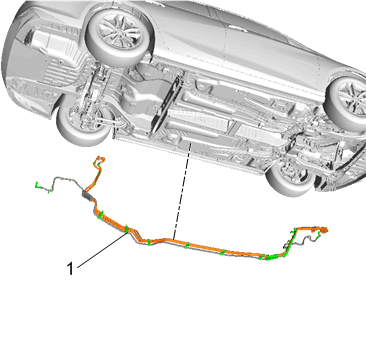

    Fig 1: High Voltage Battery Positive And Negative Cable
    GM4291575Courtesy of GENERAL MOTORS COMPANY
  2. Pass-through Grommet (2) - Install

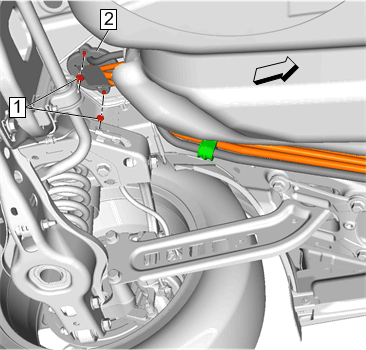

    Fig 2: Pass-through Grommet Fastener
    GM4291111Courtesy of GENERAL MOTORS COMPANY
  3. Pass-through Grommet Fastener (1) - Install and tighten [2x] 9 N.m (80 lb in)
    CAUTION: Refer to Fastener Caution
  4. Retainer (1) - Engage [5x]

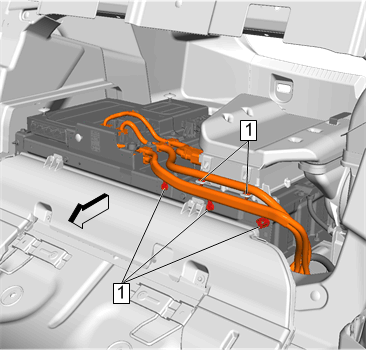

    Fig 3: Retainer
    GM4291095Courtesy of GENERAL MOTORS COMPANY
  5. Electrical Connector (1) - Connect [3x]

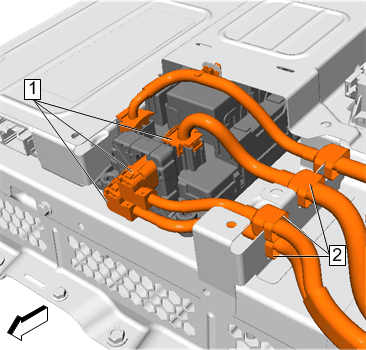

    Fig 4: High Voltage Battery Positive And Negative Cable Insulators
    GM4291056Courtesy of GENERAL MOTORS COMPANY
  6. Install the high voltage battery positive and negative cable insulators. (2)
  7. High Voltage Battery Positive and Negative Cable Cover (2) - Install High Voltage Battery Positive and Negative Cable Cover Replacement
    Fig 5: High Voltage Battery Positive and Negative Cable Cover
    GM4291023Courtesy of GENERAL MOTORS COMPANY
  8. Battery Positive Cable Retainer (1) - Engage [2x]

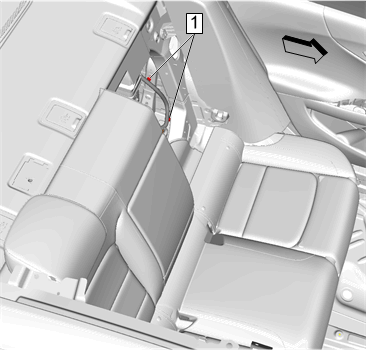

    Fig 6: Battery Positive Cable Retainer
    GM4290849Courtesy of GENERAL MOTORS COMPANY
    NOTE: Seat back removed to show location of retainers.
  9. Battery Positive Cable (1) - Install

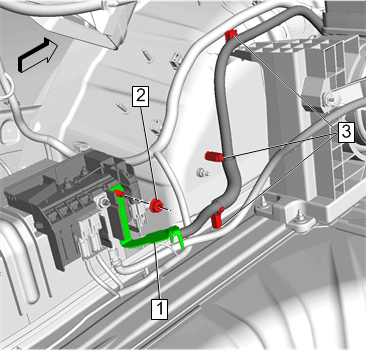

    Fig 7: Battery Positive Cable Nut
    GM4290847Courtesy of GENERAL MOTORS COMPANY
  10. Battery Positive Cable Nut (2) - Install and tighten 16 N.m (12 lb ft)
  11. Battery Positive Cable Retainer (3) - Engage [3x]
  12. Battery Distribution Fuse Block Cover (1) - Install
    Fig 8: Battery Distribution Fuse Block Cover
    GM4262102Courtesy of GENERAL MOTORS COMPANY
  13. High Voltage Battery Positive and Negative Cable Retainer Bolt (1) - Install and tighten [2x] 9 N.m (80 lb in)

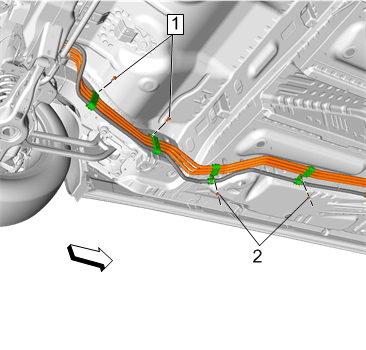

    Fig 9: High Voltage Battery Positive and Negative Cable Retainer Bolt
    GM4291126Courtesy of GENERAL MOTORS COMPANY
  14. High Voltage Battery Positive and Negative Cable Retainer Nut (2) - Install and tighten [2x] 9 N.m (80 lb in)
  15. High Voltage Battery Positive and Negative Cable Retainer Nut (1) - Install and tighten [2x] 9 N.m (80 lb in)

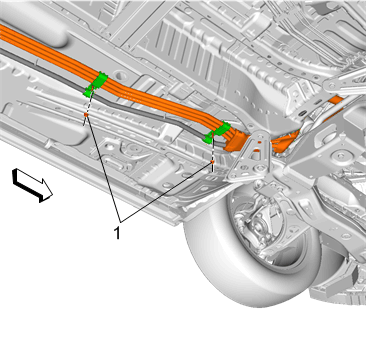

    Fig 10: High Voltage Battery Positive and Negative Cable Retainer Nut
    GM4291131Courtesy of GENERAL MOTORS COMPANY
  16. Fuel Tank (1) - Install Fuel Tank Replacement
    Fig 11: Fuel Tank
    GM4239886Courtesy of GENERAL MOTORS COMPANY
  17. Underbody Rear Air Deflector (2) - Install Underbody Rear Air Deflector Replacement - Left Side (XFE)

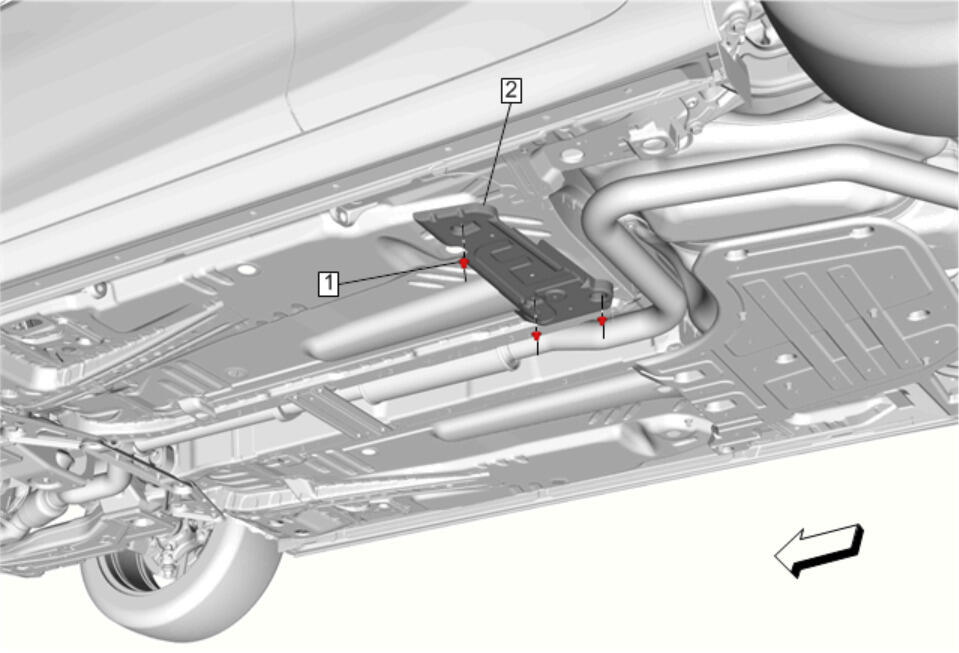

    Fig 12: Underbody Rear Air Deflector - Left Side (XFE)
    GM4212746Courtesy of GENERAL MOTORS COMPANY
  18. High Voltage Battery Positive and Negative Cable Retainer Nut (1) - Install and tighten [5x] 9 N.m (80 lb in)

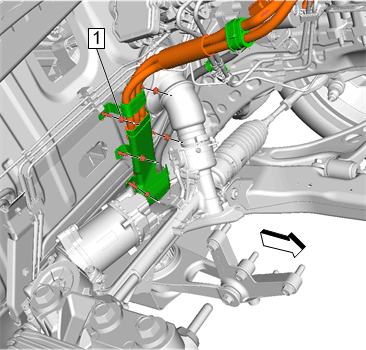

    Fig 13: Remove High Voltage Battery Positive and Negative Cable Retainer Nut
    GM4291137Courtesy of GENERAL MOTORS COMPANY
  19. Cradle Brace - Left Side (3) - Install Front Cradle Brace Replacement
    Fig 14: Front Cradle Brace

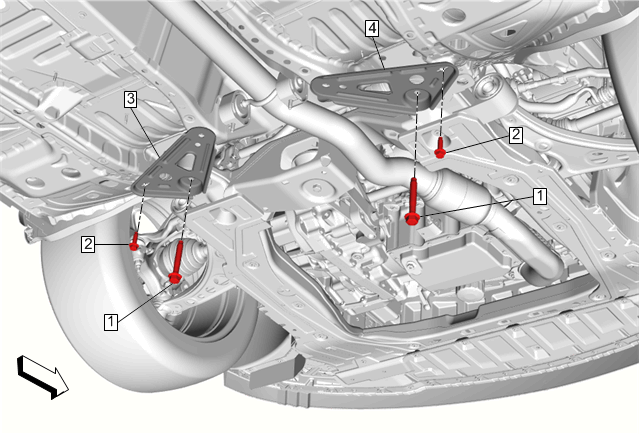

    GM4235439Courtesy of GENERAL MOTORS COMPANY
  20. Electrical Connector - Connect [2x]

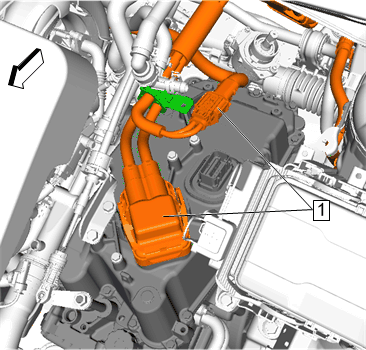

    Fig 15: Electrical Connector
    GM4291689Courtesy of GENERAL MOTORS COMPANY
  21. Drive Motor Power Inverter Module Shield (2) - Install

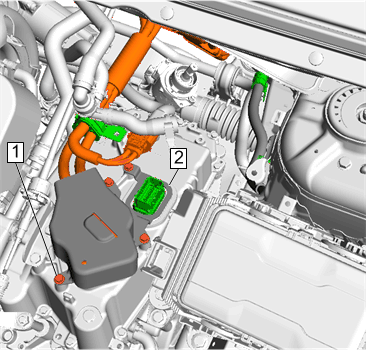

    Fig 16: Drive Motor Power Inverter Module Shield Bolt
    GM4291185Courtesy of GENERAL MOTORS COMPANY
  22. Drive Motor Power Inverter Module Shield Bolt (1) - Install and tighten [4x] 9 N.m (80 lb in)
  23. Electrical Connector (1) - Connect

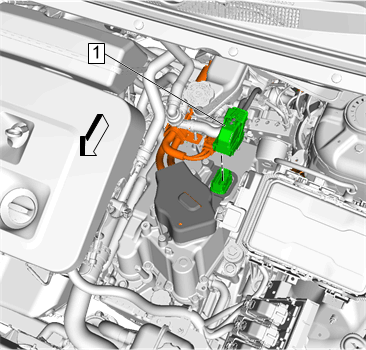

    Fig 17: Electrical Connector
    GM4291183Courtesy of GENERAL MOTORS COMPANY
  24. Drive Motor Power Inverter Module Shield (2) - Install

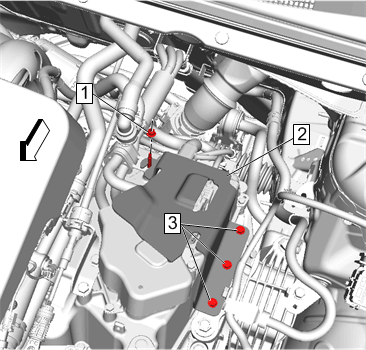

    Fig 18: T6 Power Inverter Module 56-way Connector Cover
    GM4291141Courtesy of GENERAL MOTORS COMPANY
  25. Drive Motor Power Inverter Module Shield Bolt (3) - Install and tighten [3x] 9 N.m (80 lb in)
  26. Drive Motor Power Inverter Module Shield Nut (1) - Install and tighten 9 N.m (80 lb in)
  27. Battery Positive Cable Retainer Nut (1) - Install and tighten 9 N.m (80 lb in)

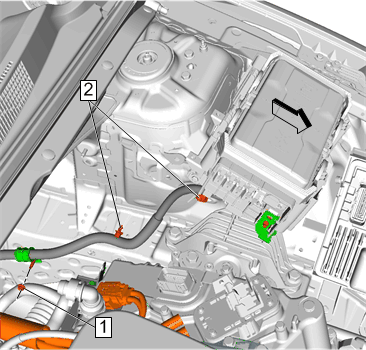

    Fig 19: Battery Positive Cable Retainer Nut
    GM4291490Courtesy of GENERAL MOTORS COMPANY
  28. Retainer (2) - Engage [2x]
  29. Electronic Brake Module with Brake Pressure Modulator Valve - Install Electronic Brake Control Module with Brake Pressure Modulator Valve Replacement
  30. Battery Positive Cable (2) - Install
    Fig 20: Battery Positive Cable Nut
    GM4279374Courtesy of GENERAL MOTORS COMPANY
  31. Battery Positive Cable Nut (1) - Install and tighten 16 N.m (12 lb ft)
  32. Battery Distribution Fuse Block Cover (1) - Install
    Fig 21: Battery Distribution Fuse Block Cover
    GM4279407Courtesy of GENERAL MOTORS COMPANY
  33. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (without KL9)Battery Negative Cable Disconnection and Connection (with KL9)
  34. Rear Compartment Side Trim Panel (1) - Install Rear Compartment Side Trim Replacement - Left Side (Without HP4)Rear Compartment Side Trim Replacement - Left Side (With HP4)

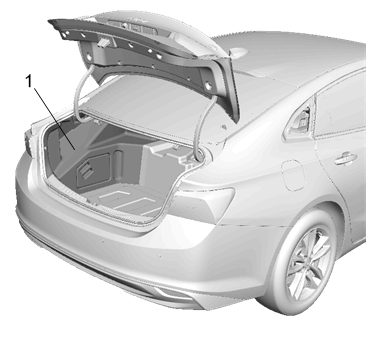

    Fig 22: Rear Compartment Side Trim Panel
    GM4291720Courtesy of GENERAL MOTORS COMPANY
  35. Enable the high voltage system. Refer to High Voltage Enabling
