Hybrid/EV Battery Pack Internal Components 2
WARNING: This page is about a different variant/trim than selected.

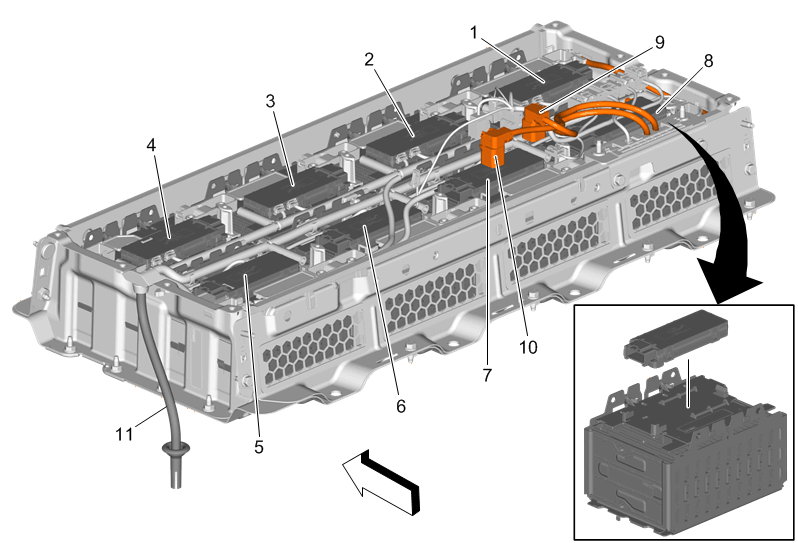

| Callout | Component Name |
|---|---|
| 1 | C4A Hybrid/EV Battery Section 1 and K112A Hybrid/EV Battery Interface Control Module |
| 2 | C4A Hybrid/EV Battery Section 2 and K112A Hybrid/EV Battery Interface Control Module |
| 3 | C4A Hybrid/EV Battery Section 3 and K112A Hybrid/EV Battery Interface Control Module |
| 4 | C4A Hybrid/EV Battery Section 4 and K112A Hybrid/EV Battery Interface Control Module |
| 5 | C4A Hybrid/EV Battery Section 5 and K112A Hybrid/EV Battery Interface Control Module |
| 6 | C4A Hybrid/EV Battery Section 6 and K112A Hybrid/EV Battery Interface Control Module |
| 7 | C4A Hybrid/EV Battery Section 7 and K112A Hybrid/EV Battery Interface Control Module |
| 8 | C4A Hybrid/EV Battery Section 8 and K112A Hybrid/EV Battery Interface Control Module |
| 9 | Hybrid/EV Battery Pack Negative Terminal |
| 10 | Hybrid/EV Battery Pack Positive Terminal |
| 11 | Battery Vent |
