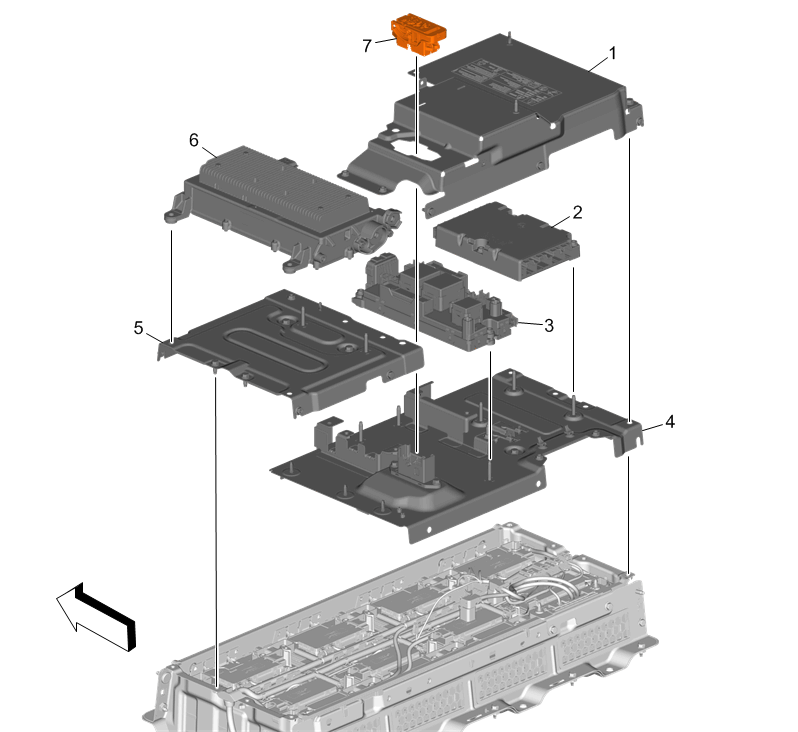

Hybrid/EV Battery Pack Internal Components 1
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |
High Voltage Battery Cover |
| 2 |
K114B Hybrid/EV Powertrain Control Module 2 |
| 3 |
A28 Hybrid/EV Battery Contactor Assembly |
| 4 |
High Voltage Battery Tray Reinforcement |
| 5 |
High Voltage Battery Tray Reinforcement |
| 6 |
K1 14V Power Module |
| 7 |
S15 Manual Service Disconnect |
