Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose (1) - Install

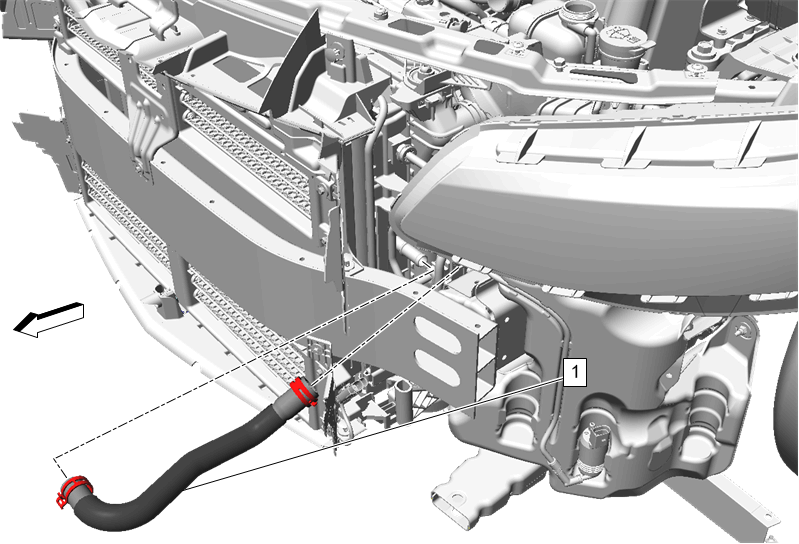

Fig 1: Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose
Courtesy of GENERAL MOTORS COMPANY
Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose (2) @ Drive Motor Power Inverter Module Coolant Pipe (3) - Install

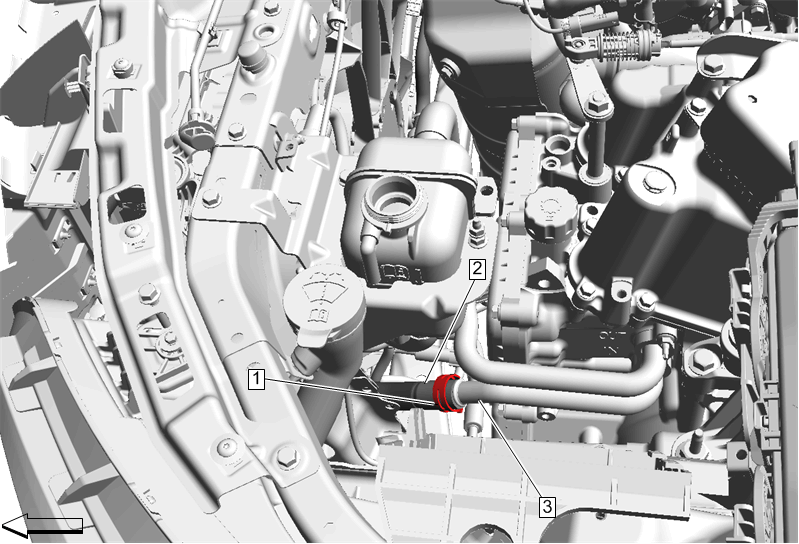

Fig 2: Generator Control Module Coolant Pump Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Hose Clamp (1) - Engage Hose Clamp Replacement Guidelines - Spring Type
Drive Motor Generator Battery Bracket (3) - Install Drive Motor Generator Battery Bracket Replacement (Drive Motor Generator Battery Cooling Blower) Drive Motor Generator Battery Bracket Replacement (Drive Motor Battery Radiator Surge Tank)

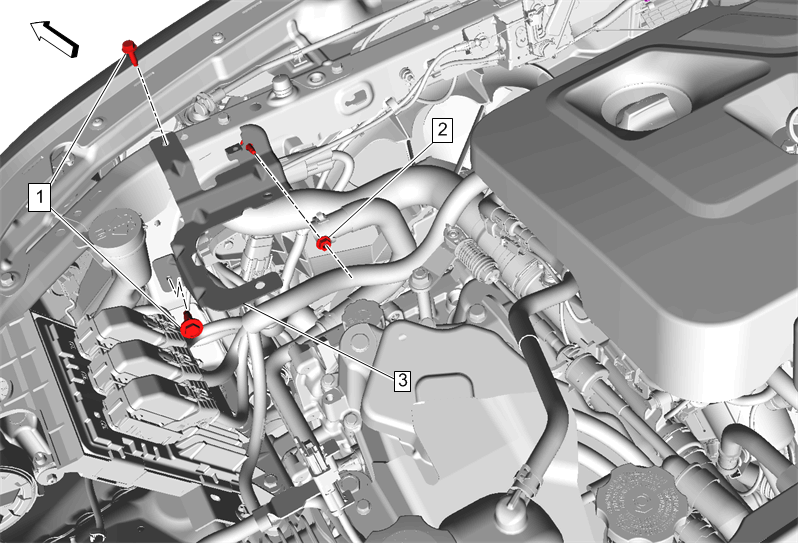

Fig 3: Coolant Temperature System Control Module Bracket
Courtesy of GENERAL MOTORS COMPANY
Drive Motor Generator Power Inverter Module Pump Cooling Inlet Hose (3) @ Auxiliary Radiator (2) - Install

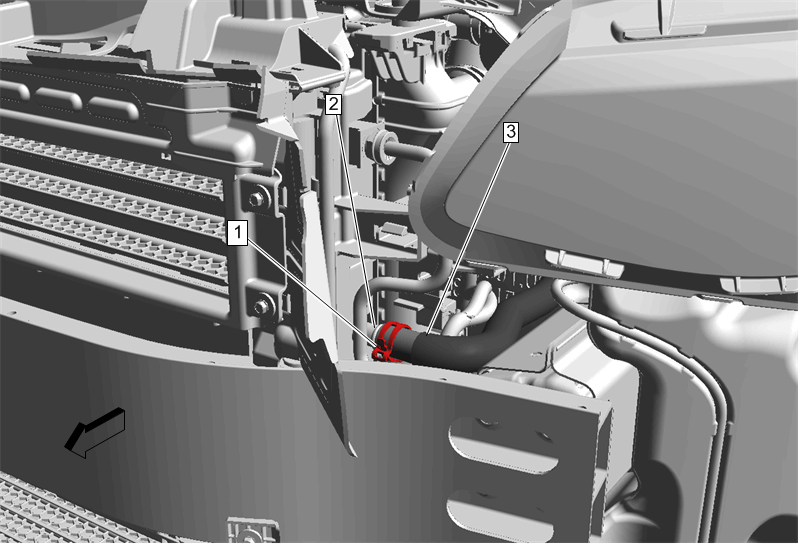

Fig 4: Generator Control Module Coolant Pump Hose Clamp
Courtesy of GENERAL MOTORS COMPANY
Generator Control Module Coolant Pump Hose Clamp (1) - Engage Hose Clamp Replacement Guidelines - Spring Type
Front Bumper Fascia (4) - Install Front Bumper Fascia Replacement

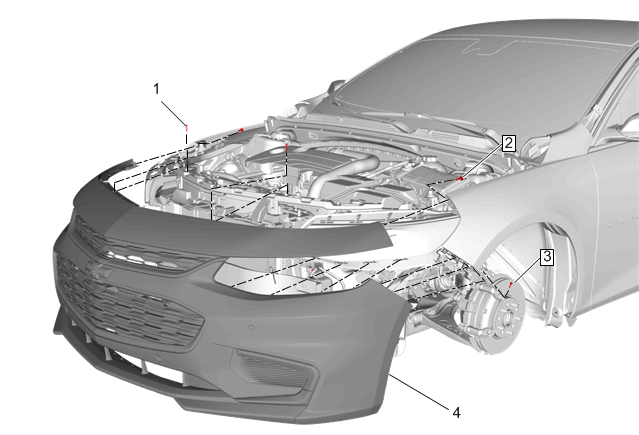

Fig 5: Front Bumper Fascia
Courtesy of GENERAL MOTORS COMPANY
Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
Inspect for coolant leaks.
