Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Disable the high voltage system. Refer to High Voltage Disabling
High Voltage Battery (1) - Remove High Voltage Battery Replacement and Shipping Preparation

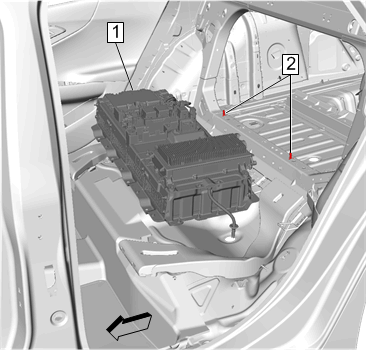

Fig 1: High Voltage Battery
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Left Side (1) - Remove High Voltage Battery Tray Reinforcement Replacement (Left Side)

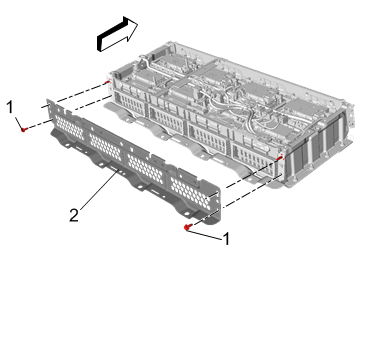

Fig 2: High Voltage Battery Tray Reinforcement -- Left Side
Courtesy of GENERAL MOTORS COMPANY
High Voltage Battery Tray Reinforcement - Right Side (1) - Remove High Voltage Battery Tray Reinforcement Replacement (Right Side)

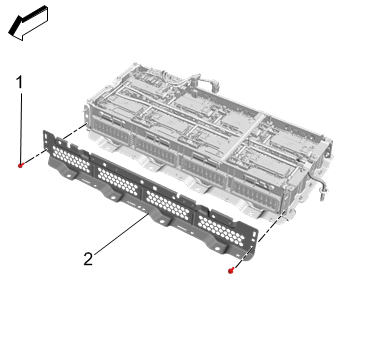

Fig 3: High Voltage Battery Tray Reinforcement -- Right Side
Courtesy of GENERAL MOTORS COMPANY
Battery Cover - Front (3) - Remove Battery Cover Replacement (Front Panel)

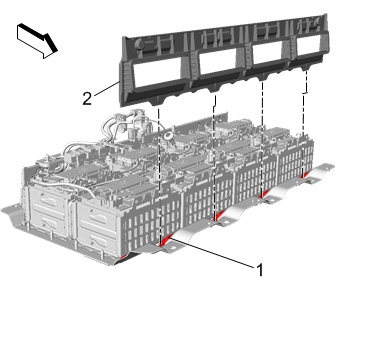

Fig 4: Battery Cover -- Front
Courtesy of GENERAL MOTORS COMPANY
Battery Cover - Back (2) - Remove Battery Cover Replacement (Back Panel)

Fig 5: Battery Cover -- Back
Courtesy of GENERAL MOTORS COMPANY

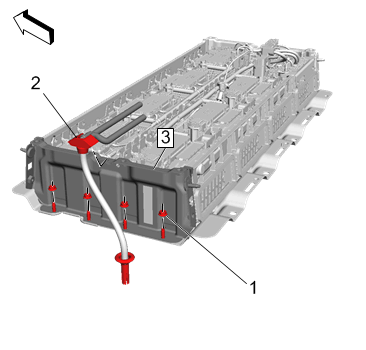

Disengage the cell battery vent tube grommet (2) and reposition away.

Fig 6: Battery Hold Down Retainer -- Left Side Panel
Courtesy of GENERAL MOTORS COMPANY
Battery Hold Down Retainer Nut (1) - Remove [4x]
Battery Hold Down Retainer - Left Side Panel (3) - Remove
Wiring Harness Retainer (2) - Disengage

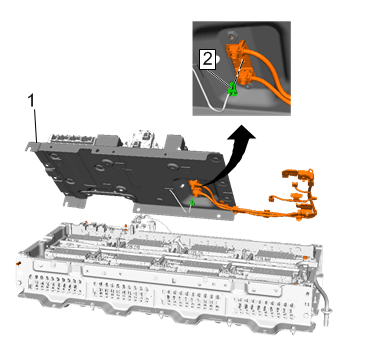

Fig 7: Wiring Harness Retainer
Courtesy of GENERAL MOTORS COMPANY

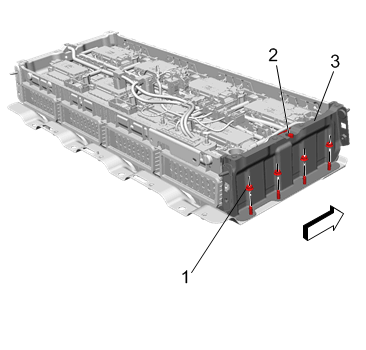

Battery Hold Down Retainer Nut (1) - Remove [4x]
Battery Hold Down Retainer - Right Side Panel (3) - Remove
Battery Cooling Air Inlet Duct - Front (2) - Remove

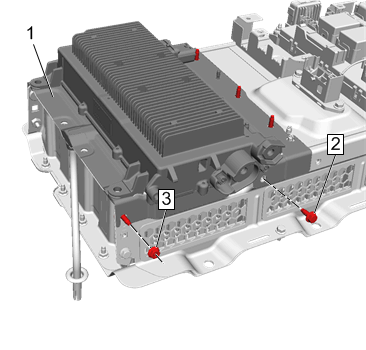

Fig 8: Battery Cooling Air Inlet Duct -- Front
Courtesy of GENERAL MOTORS COMPANY

NOTE: Take care not to damage duct seal (1) when removing.
