Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Support the transmission using a suitable jack.
  2. Remove the battery tray. Refer to Battery Tray Replacement
  3. Remove the Engine Wiring Harness Fuse Block Bracket. Refer to Engine Wiring Harness Fuse Block Bracket Replacement
  4. Engine Mount Brace Bolt (1)» Remove

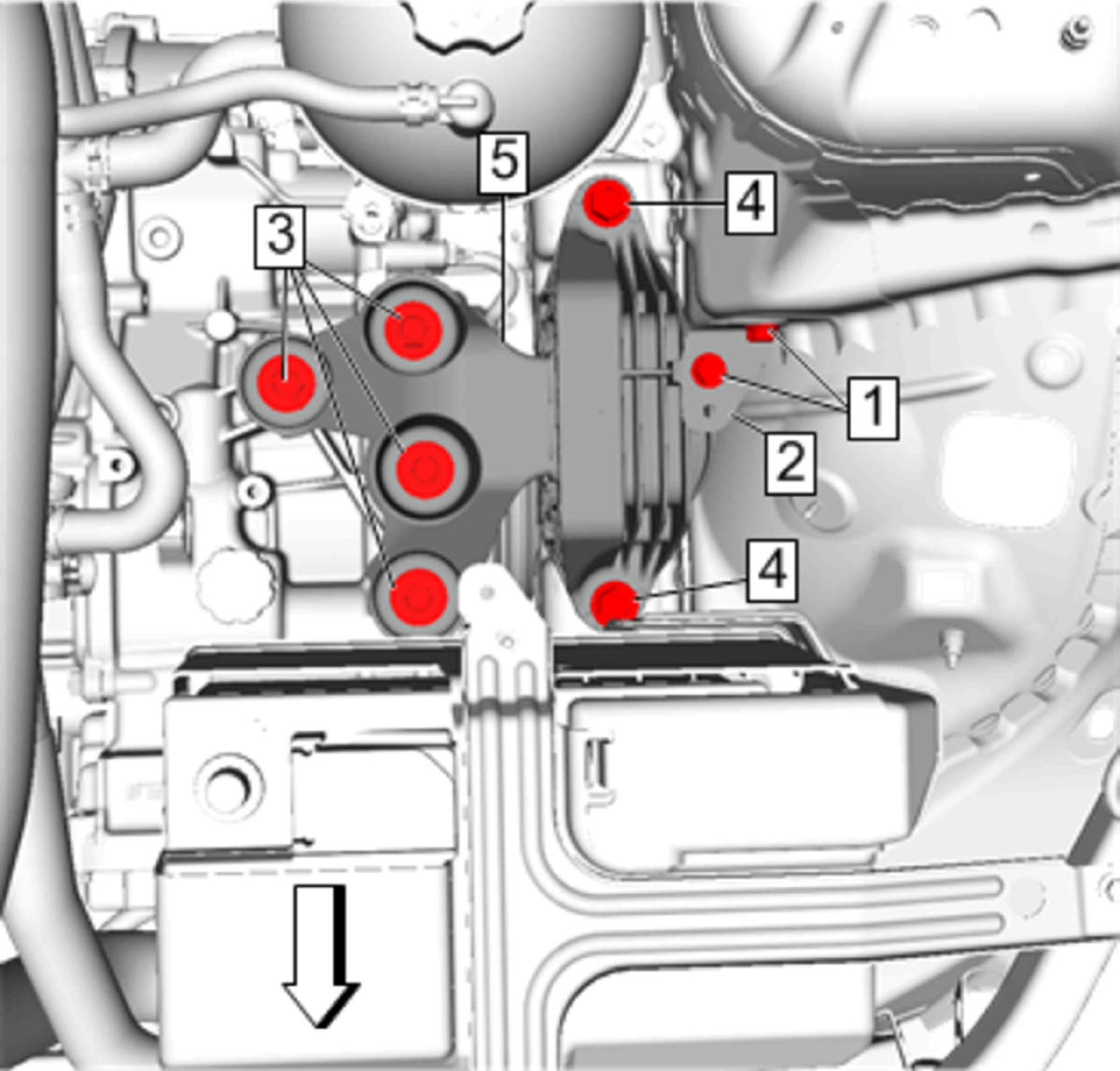

    Fig 1: Transmission Mount
    GM4507711Courtesy of GENERAL MOTORS COMPANY
    NOTE: Engine Control Module Bracket removed for clarity.
  5. Remove the transmission mount bracket (2) from the vehicle.
  6. Transmission Mount Transmission Side Bolt (3)» Remove and DISCARD
  7. Transmission Mount Bolt (4)» Remove
  8. Remove the transmission mount (5) from the vehicle.
