Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the manual shaft seal (1) using DT-49101  seal installer.

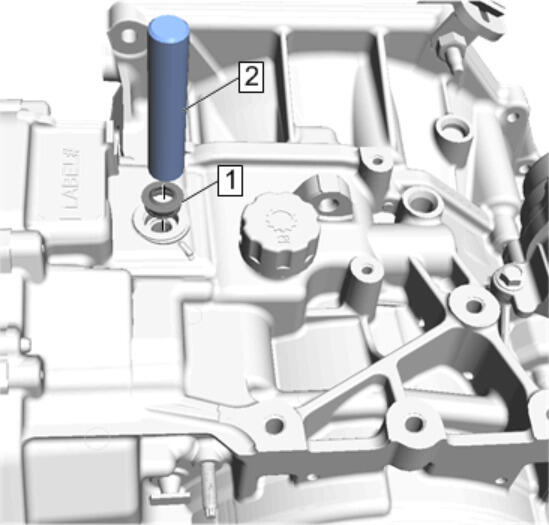

    Fig 1: Manual Shaft Seal
    GM4493153Courtesy of GENERAL MOTORS COMPANY
  2. Install the manual shift detent lever shaft assembly. Refer to Manual Shift Detent Lever Shaft Replacement
