Manual Shift Detent Lever Shaft Replacement

WARNING: This page is about a different variant/trim than selected.

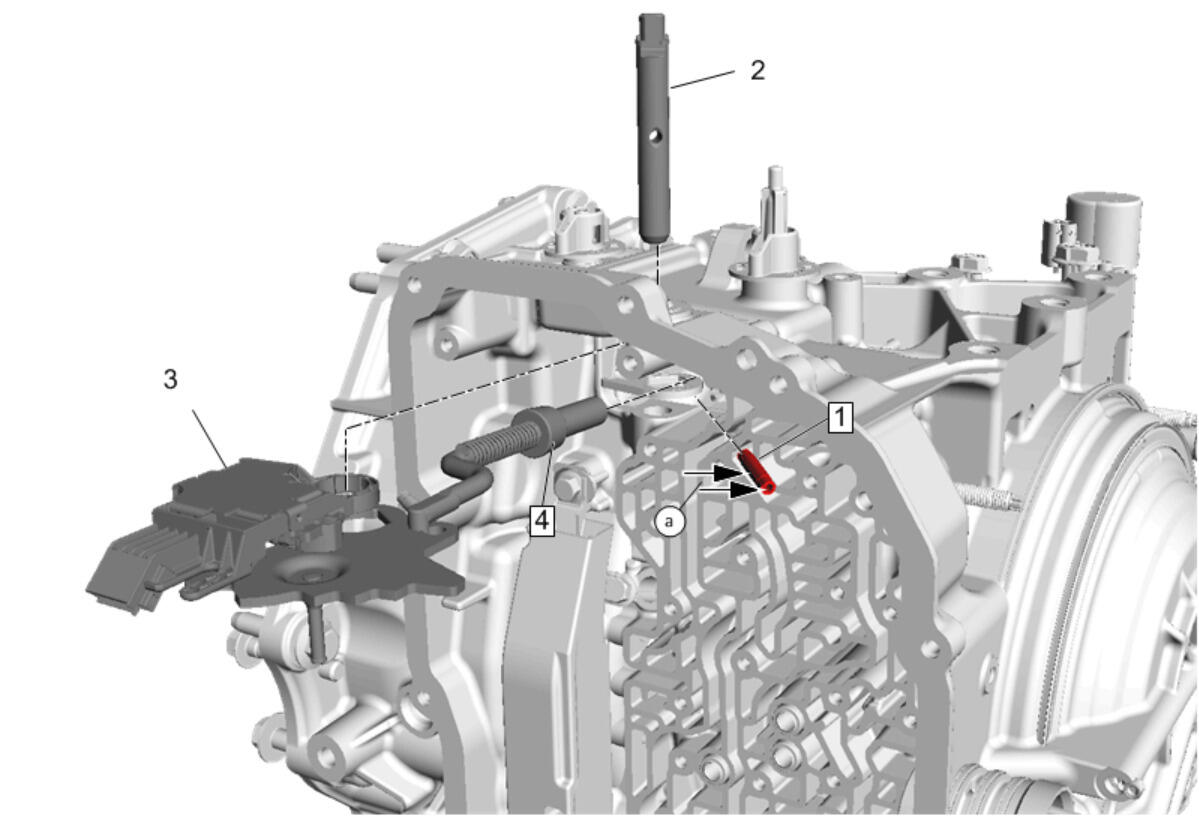

Fig 1: Manual Shift Detent Lever Shaft

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Automatic Transmission Range Selector Lever Cable Replacement Control Valve Body Replacement
1	Manual Shaft Detent Lever Hub Pin CAUTION: Refer to Fastener Caution . Procedure Install the manual shaft detent lever hub pin to correct height. NOTE: Install a NEW manual shaft detent lever hub pin. Specification 7.9 mm (0.38 in) (a)
2	Manual Shaft NOTE: Lubricate the shaft with ATF to prevent damage to the manual shift shaft seal during installation.
3	Manual Shaft Detent Lever Assembly
4	Park Pawl Actuator
