Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Evaporative Emission Pipe (1) @ Retainer (2) - Install [6x]

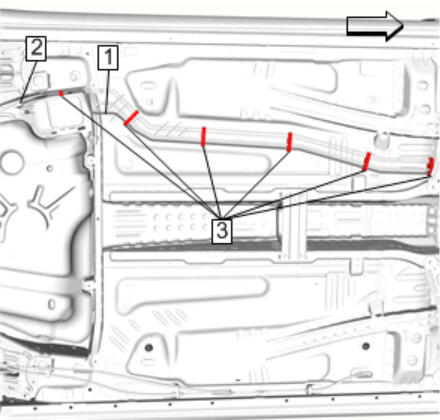

    Fig 1: Evaporative Emission Pipe
    GM4244445Courtesy of GENERAL MOTORS COMPANY
  2. Evaporative Emission Pipe (1) @ Evaporative Emission Canister Purge Pipe (2) - Connect Plastic Collar Quick Connect Fitting Service
  3. Evaporative Emission Pipe (1) @ Retainer (2) - Install [5x]

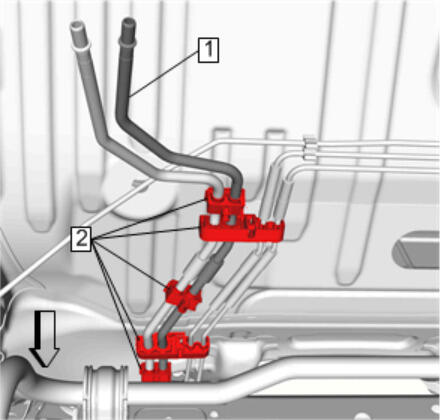

    Fig 2: Evaporative Emission Pipe Retainers
    GM4244607Courtesy of GENERAL MOTORS COMPANY
  4. Brake and Fuel Pipe Shield (1) - Install
    Fig 3: Brake and Fuel Pipe Shield
    GM4244586Courtesy of GENERAL MOTORS COMPANY
  5. Evaporative Emission Front Pipe Replacement  - Install
