Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Charge Air Cooler Outlet Air Tube (2) - Install

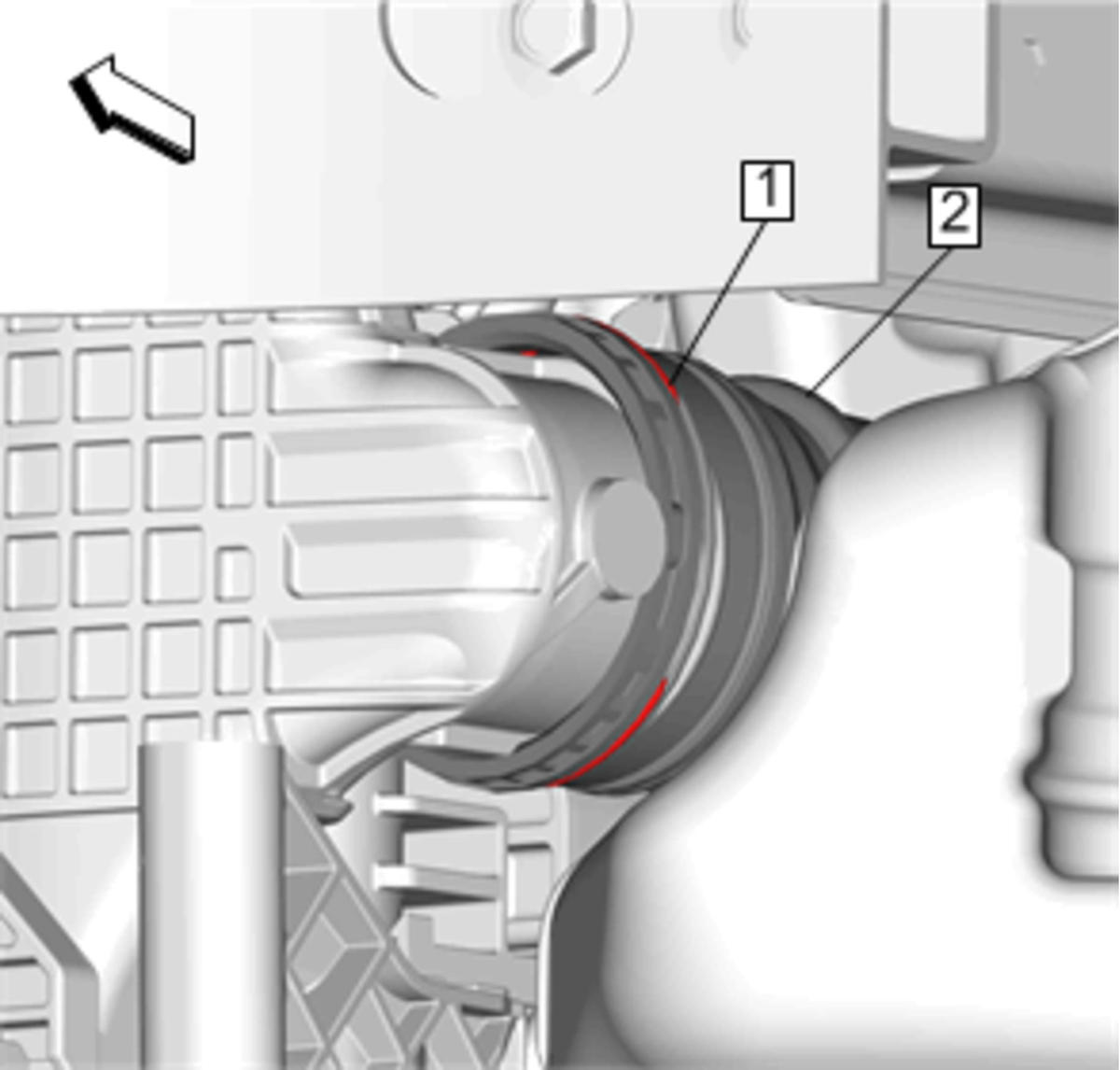

Fig 1: Retainer Spring
Courtesy of GENERAL MOTORS COMPANY
Retainer Spring (1) - Engage
Charge Air Cooler Outlet Air Tube (3) - Install

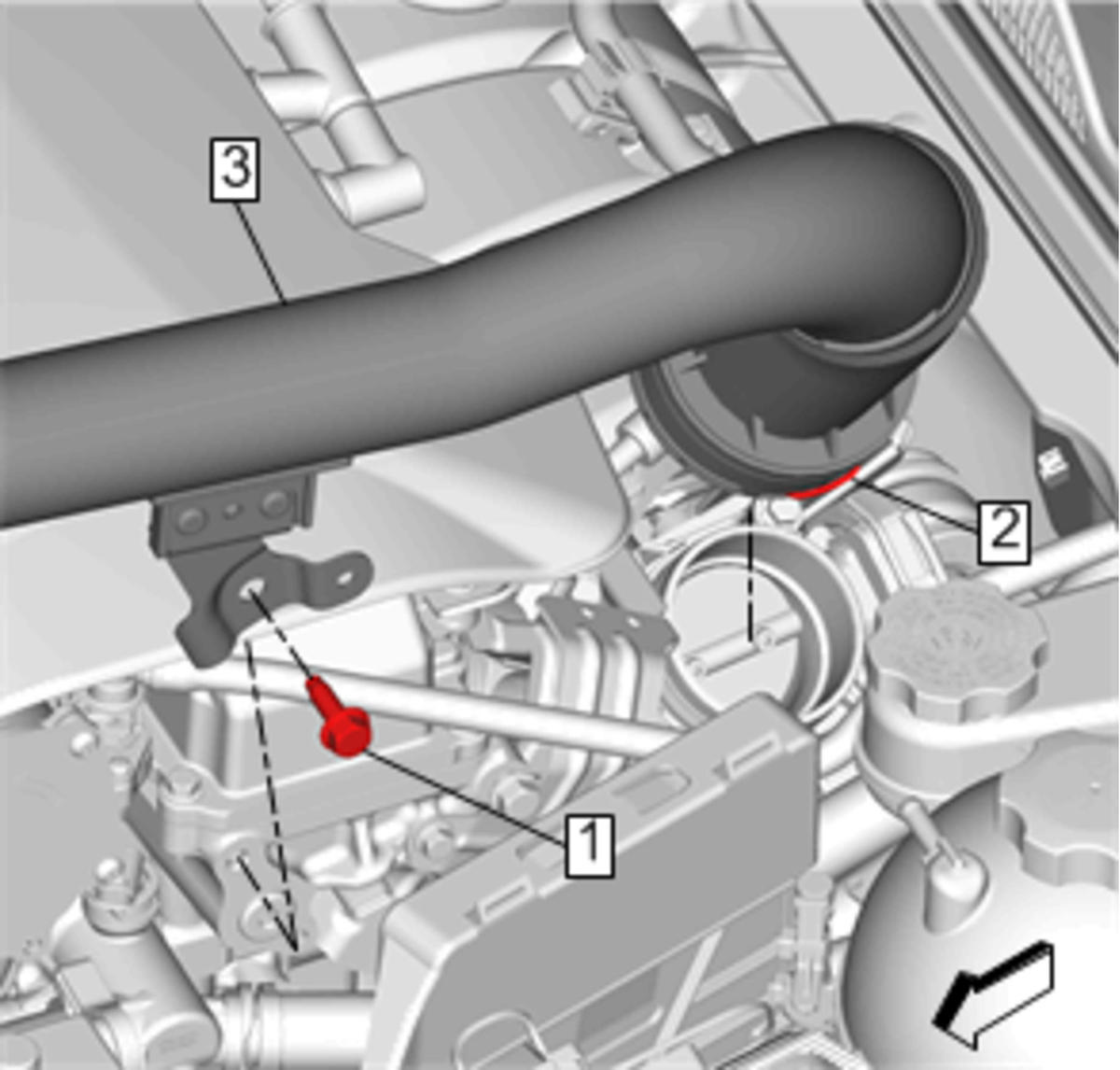

Fig 2: Charge Air Cooler Outlet Air Tube Fastener
Courtesy of GENERAL MOTORS COMPANY
Retainer Spring (2) - Engage
Charge Air Cooler Outlet Air Tube Fastener (1) - Install 22 N.m (16 lb ft)
CAUTION: Refer to Fastener Caution .
Intake Air Pressure and Temperature Sensor Replacement - Connect
Front Bumper Fascia Replacement - Install
