Intake Air Pressure and Temperature Sensor Replacement

WARNING: This page is about a different variant/trim than selected.

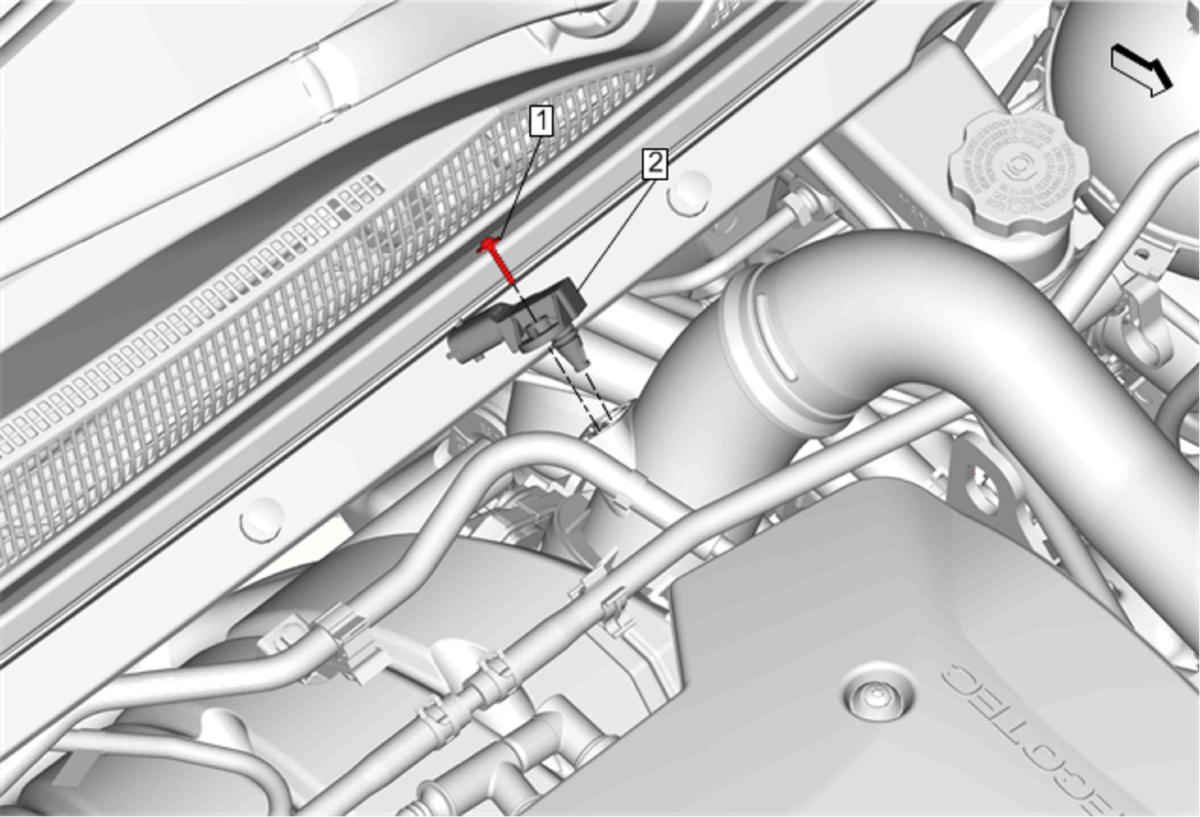

Fig 1: Intake Air Pressure and Temperature Sensor
GM4214797Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Intake Air Pressure and Temperature Sensor Fastener
CAUTION: Refer to Fastener Caution .

Tighten
4 N.m (35 lb in)
2 Intake Air Pressure and Temperature Sensor
Procedure
Disconnect the electrical connector.
