Water Pump Replacement (LKN)

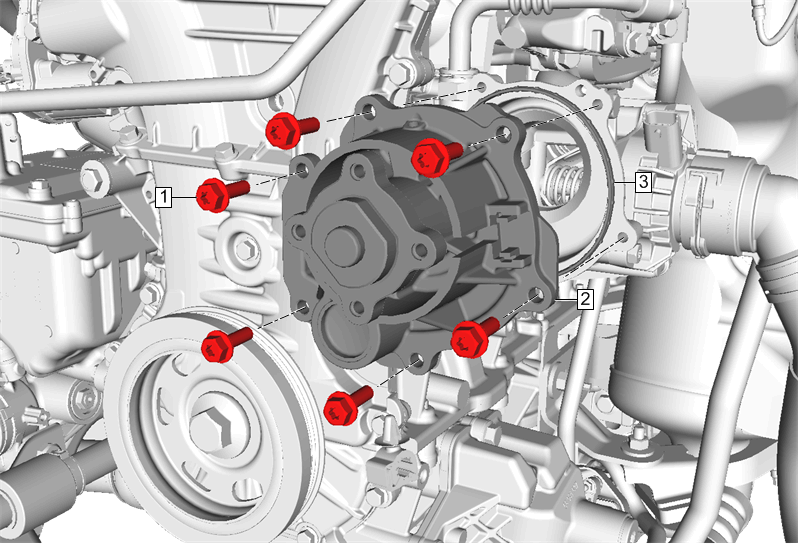

Fig 1: Water Pump (LKN)
GM4296166Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (Static) Cooling System Draining and Filling (GE 47716)
  2. Water Pump Pulley Replacement (LKN)
1 Water Pump Bolt [6x]
CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)
2 Water Pump
3 Water Pump Seal
Procedure
Install a NEW water pump seal.
