Water Pump Pulley Replacement (LKN)

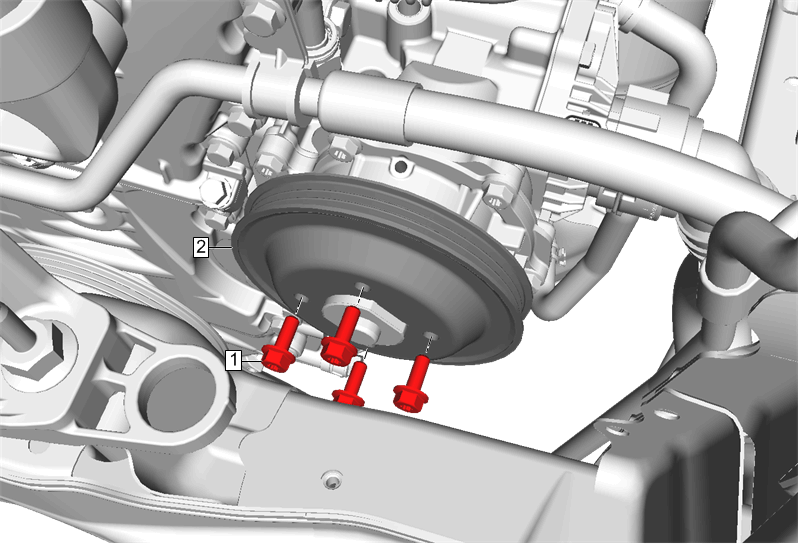

Fig 1: Water Pump Pulley (LKN)
GM4296114Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Water Pump Belt Replacement
1 Water Pump Pulley Bolt [4x]
CAUTION: Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)
2 Water Pump Pulley
