Body Harness Routing - Passenger Compartment - Right Front

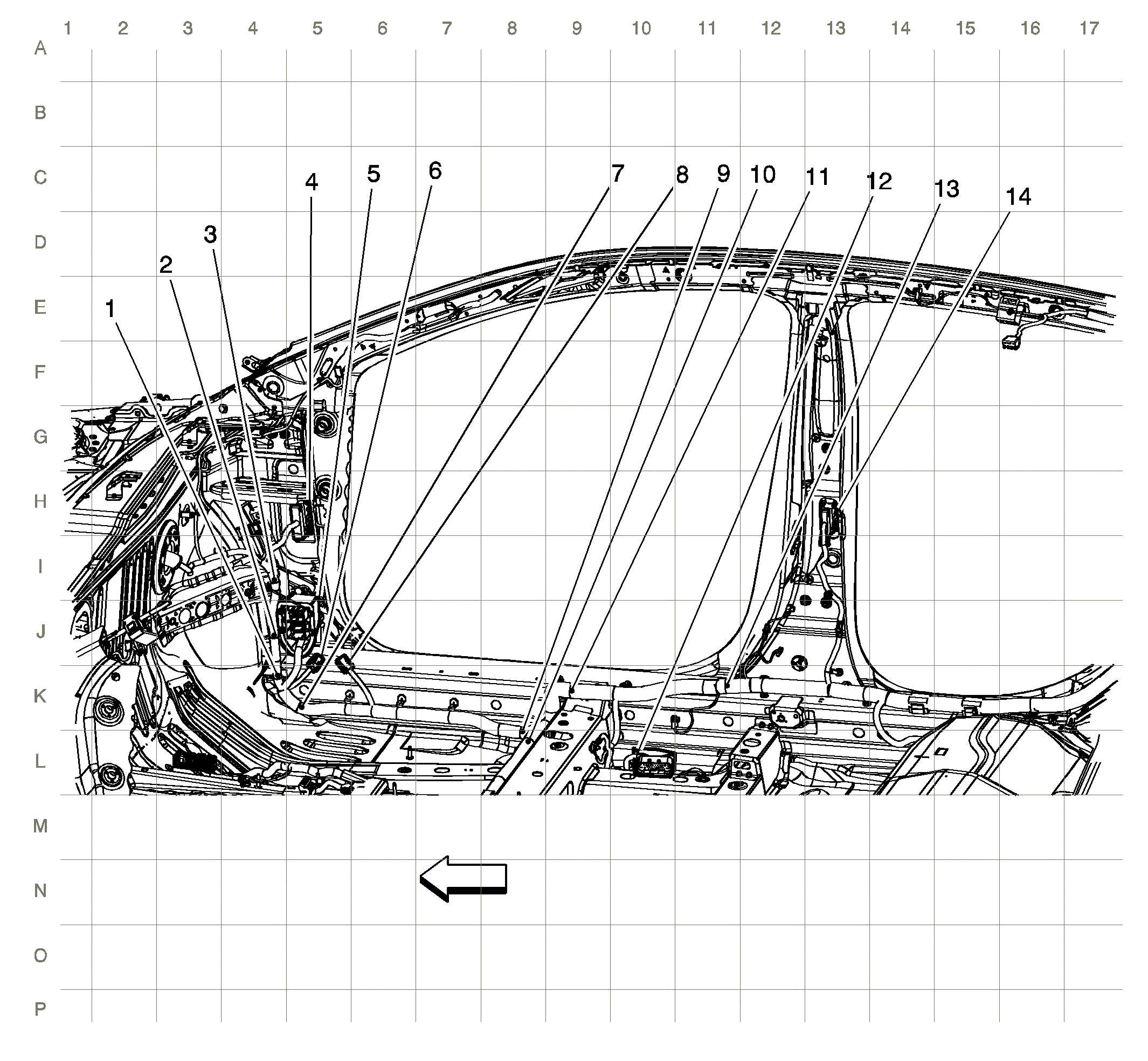

Fig 1: Body Harness Routing - Passenger Compartment - Right Front

Courtesy of GENERAL MOTORS COMPANY

Items
J207
J206
J205
X600 X600 Passenger Door Harness to Body Harness
X220 X220 Instrument Panel Harness to Body Harness
X213 X213 Body Harness to Instrument Panel Coax Harness
J208
X214 (UE1)
J312
J344
J315
J320
J321
X800 X800 Right Rear Door Harness to Body Harness
