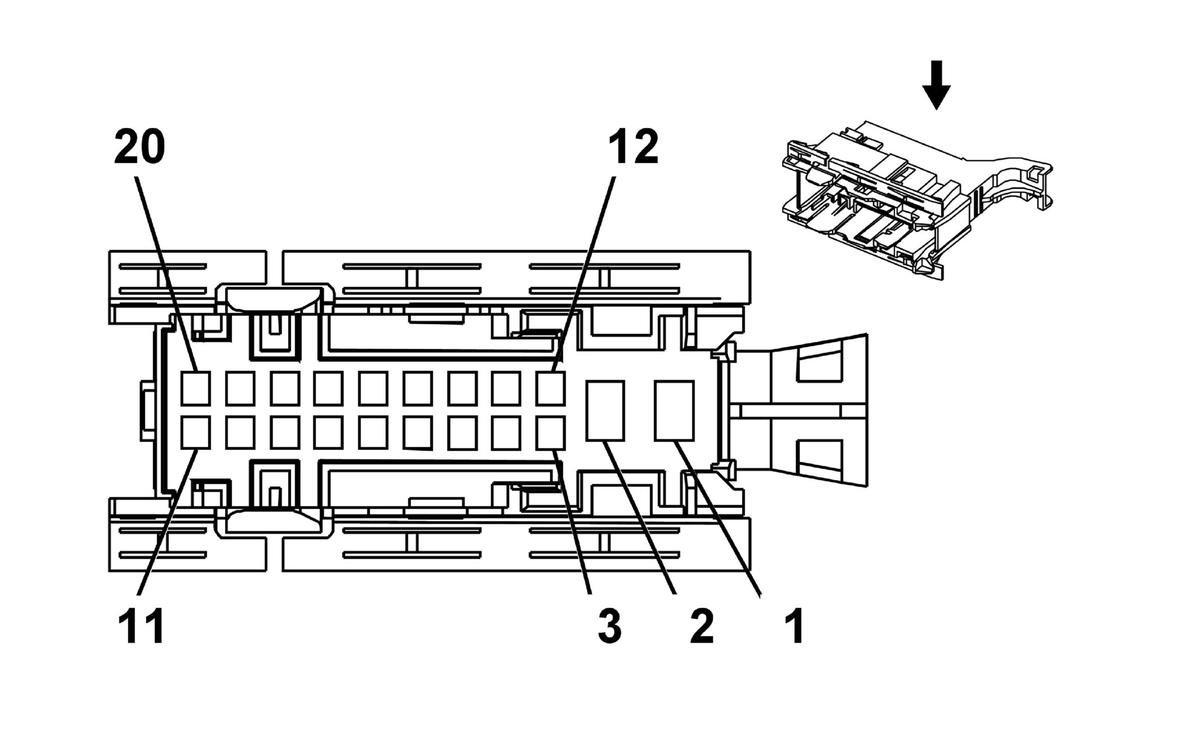

X800 Right Rear Door Harness to Body Harness


Connector Part Information Harness Type: Right Rear Door OEM Connector: 13678789 Service Connector: Service by Harness - See Part Catalog Description: 20-Way F 4.8 Timer, 1.5 DSQ Series (GY)	Connector Part Information Harness Type: Body OEM Connector: 13680032 Service Connector: 13577518 Description: 20-Way M 1.5, 2.8 DSQ Series (GY)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	Not Required	J-35616-14 (GN)	No Tool Required	Not Required	Not Required	Not Required	Not Required
II	Not Required	J-35616-42 (RD)	No Tool Required	Not Required	Not Required	Not Required	Not Required
III	13575556	J-35616-34 (YE)	J-38125-560	Not Available	Not Available	Not Available	Not Available
IV	13575775	J-35616-34 (YE)	J-38125-560	Not Available	Not Available	Not Available	Not Available
V	13575776	J-35616-34 (YE)	J-38125-560	964265-2	Lear 28	E	C
VI	13575857	J-35616-41 (BU)	J-38125-12A	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	2	RD/WH	1340	II	-	Battery Positive Voltage	1	2	RD/WH	1340	VI	-
2	2	BK	2050	II	-	Ground	2	2	BK	2050	VI	-
3	0.35	GN/GY	6135	I	-	Local Interconnect Network Serial Data Bus 4	3	0.35	GN/GY	6135	IV	-
4	-	-	-	-	-	Not Occupied	4	-	-	-	-	-
5	0.35	WH/YE	7557	I	-	LED Ambient Lighting Control 1	5	0.35	WH/YE	7557	IV	-
6	0.35	YE/GY	6158	I	-	Right Rear Door Handle Switch Signal	6	0.35	YE/GY	6158	IV	-
7	0.35	YE/BU	1772	I	-	Right Rear Door Lock Motor Status	7	0.35	YE/BU	1772	IV	-
8	0.75	BN/YE	294	I	-	Door Lock Actuator Unlock Control	8	0.75	BN/YE	294	V	-
9	0.75	GY	295	I	-	Door Lock Actuator Lock Control	9	0.75	GY	295	V	-
10 - 13	-	-	-	-	-	Not Occupied	10 - 13	-	-	-	-	-
14	0.5	WH	46	I	-	Right Rear Speaker Control (+)	14	0.75 1	WH WH	46 46	V III	UQA UFQ
15	0.5	BU/BK	115	I	-	Right Rear Speaker Signal (-)	15	0.75 1	BU/BK BU/BK	115 115	V III	UQA UFQ
16 - 19	-	-	-	-	-	Not Occupied	16 - 19	-	-	-	-	-
20	0.35	BK	2150	I	-	Ground	20	0.35	BK	2150	IV	-
