Front Seat Vertical Actuator Lever Replacement

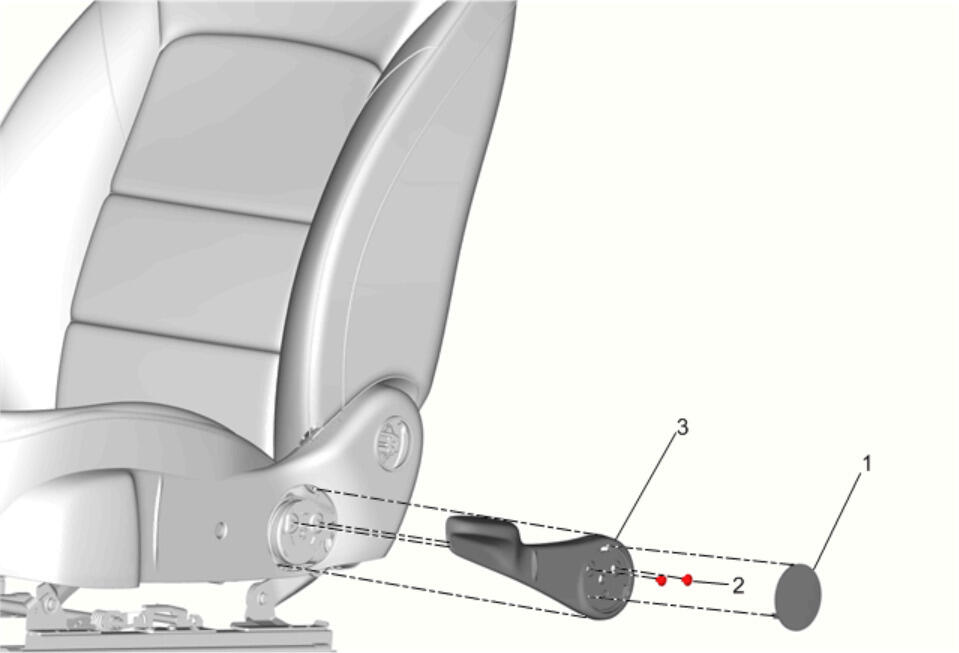

Fig 1: Front Seat Vertical Actuator Lever

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Driver or Passenger Seat Adjuster Handle Replacement
1	Front Seat Adjuster Finish Cover Bolt Cap
2	Front Seat Vertical Actuator Lever Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
3	Front Seat Vertical Actuator Lever
