Driver or Passenger Seat Adjuster Handle Replacement

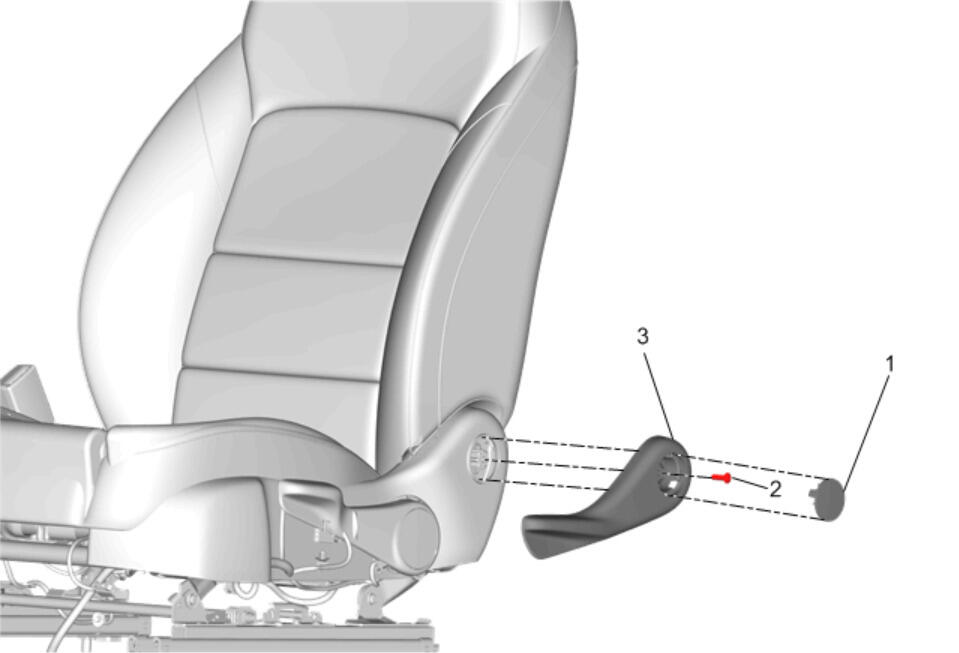

Fig 1: Driver or Passenger Seat Adjuster Handle
GM4195475Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Adjuster Finish Cover Bolt Cap
2 Front Seat Adjuster Handle Fastener
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
3 Front Seat Adjuster Handle
