Front Seat Cushion Outer Finish Cover Replacement (Manual)

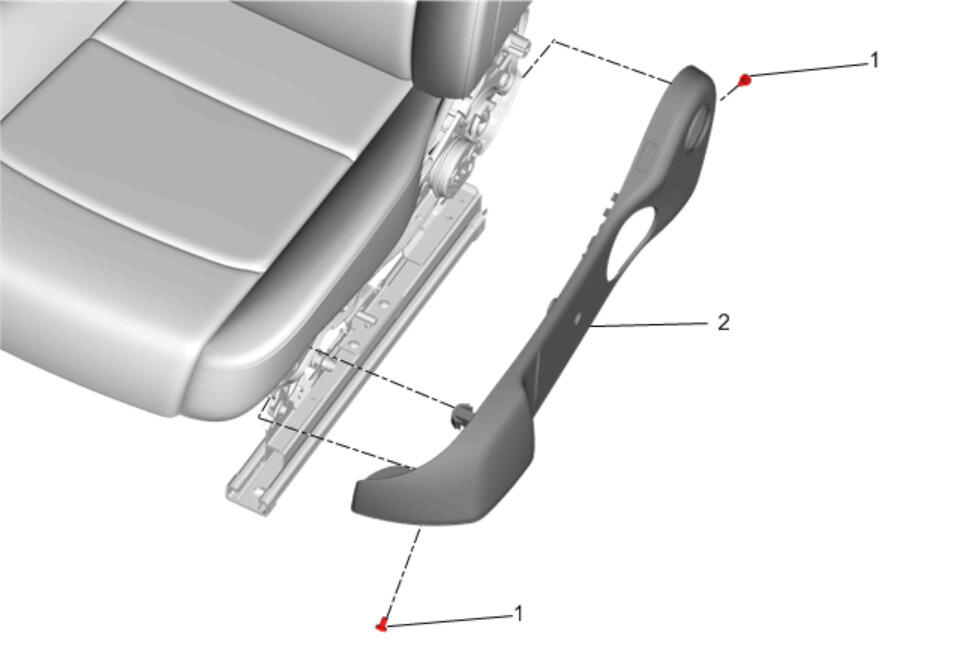

Fig 1: Front Seat Cushion Outer Finish Cover (Manual)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Seat Vertical Actuator Lever Replacement
1	Front Seat Cushion Outer Finish Cover Fastener [2x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Front Seat Cushion Outer Finish Cover
