Front Floor Console Extension Panel Replacement

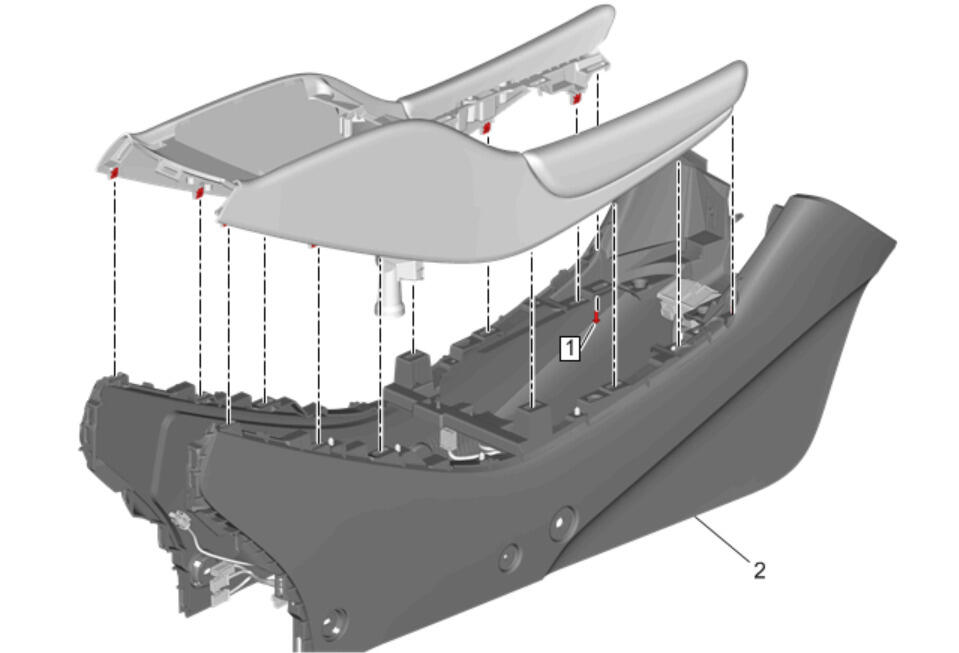

Fig 1: Front Floor Console Extension Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Compartment Replacement
1	Front Floor Console Side Trim Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Front Floor Console Extension Panel Procedure Use a plastic trim tool if necessary. Disconnect electrical connections, if applicable.

Callout

Component Name

Front Floor Console Side Trim Bolt [2x]

CAUTION: Refer to Fastener Caution .

Tighten
1 N.m (9 lb in)

Front Floor Console Extension Panel

Procedure
