Front Floor Console Compartment Replacement

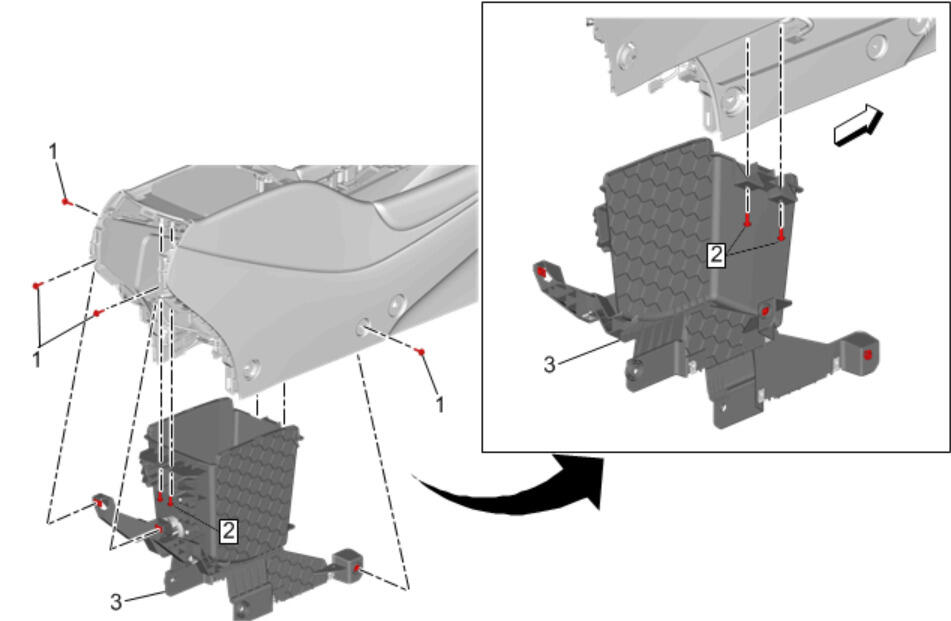

Fig 1: Front Floor Console Compartment
GM4229861Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Front Floor Console Rear Air Duct Replacement (Accessory AC and DC Power Control Module Cooler Duct)Front Floor Console Rear Air Duct Replacement (To Outlet)Front Floor Console Rear Air Duct Replacement (Without KI6 To Outlet)
  2. Front Floor Console Armrest Hinge Replacement
1 Front Floor Console Compartment Bolt [4x]
CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)
2 Front Floor Console Retainer Bolt [4x]
Tighten
1.5 N.m (13 lb in)
3 Front Floor Console Compartment

Procedure

  1. Disconnect electrical connections, if applicable.
  2. Transfer components as necessary.
