Front Floor Console Armrest Hinge Replacement

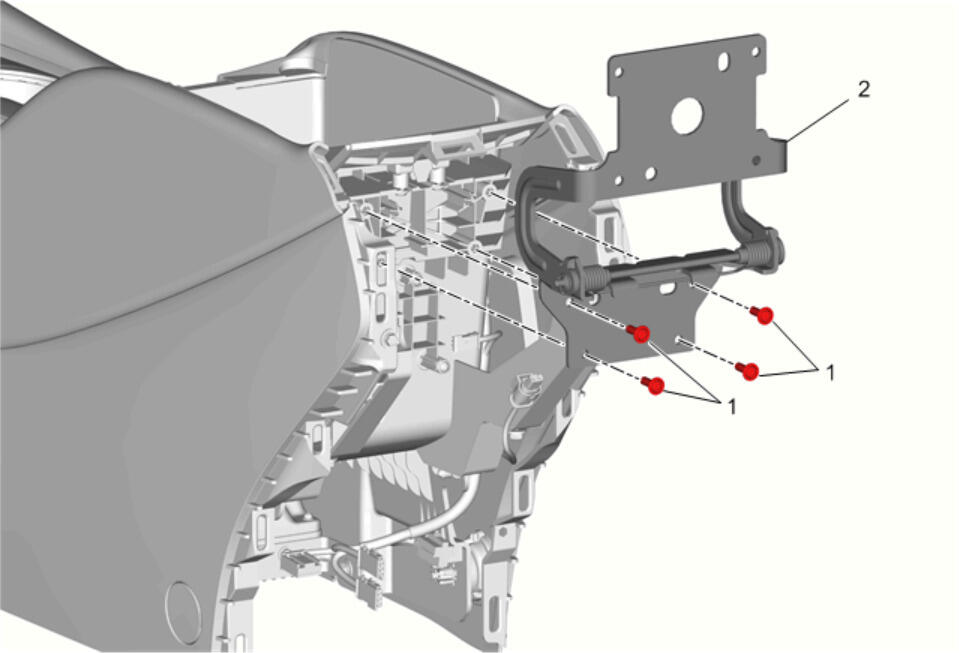

Fig 1: Front Floor Console Armrest Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Outer Armrest Replacement Front Floor Console Rear Trim Panel Replacement
1	Front Floor Console Armrest Hinge Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 1.5 N.m (13 lb in)
2	Front Floor Console Armrest Hinge

Callout

Component Name

Preliminary Procedure

Front Floor Console Armrest Hinge Bolt [4x]

CAUTION: Refer to Fastener Caution .

Tighten
1.5 N.m (13 lb in)

Front Floor Console Armrest Hinge
