Front Floor Console Outer Armrest Replacement

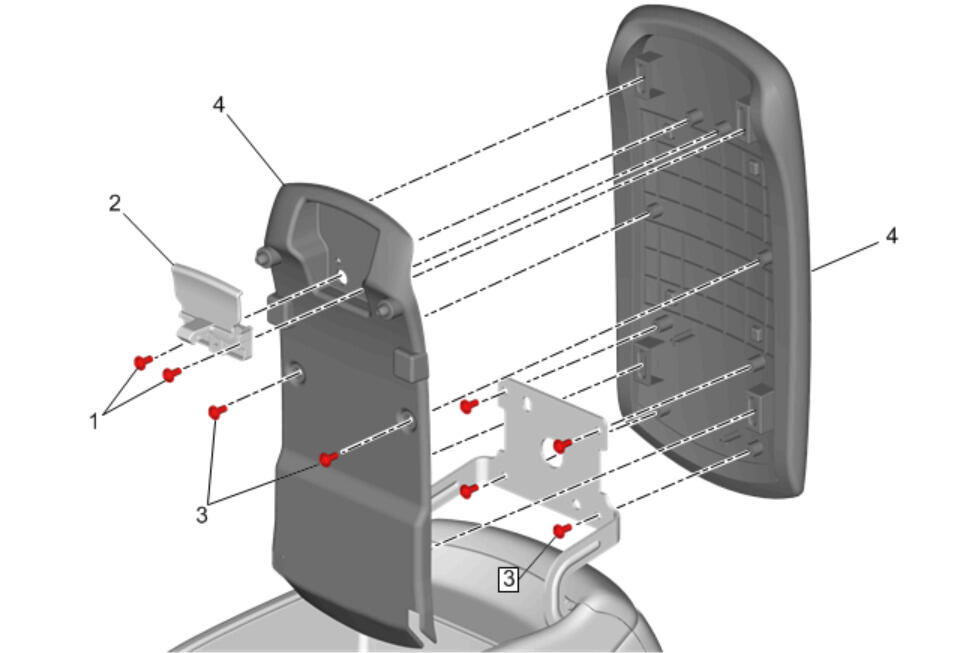

Fig 1: Front Floor Console Outer Armrest

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Armrest Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  1.5 N.m (13 lb in)
2	Front Floor Console Armrest Latch
3	Front Floor Console Armrest Hinge Bolt [6x] Tighten  1.5 N.m (13 lb in)
4	Front Floor Console Outer Armrest Procedure  Use a flat bladed plastic trim tool.
