Instrument Panel Tie Bar Brace Replacement

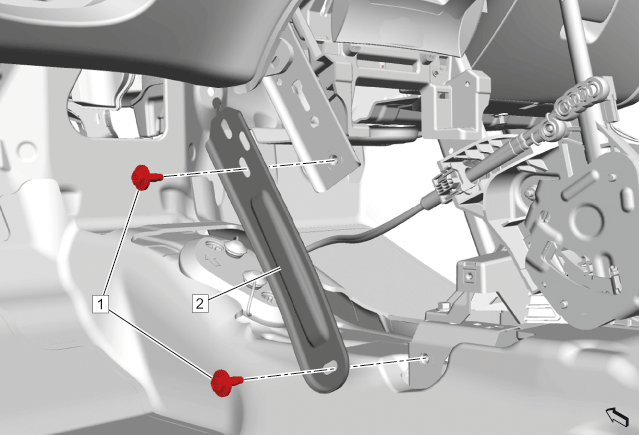

Fig 1: Instrument Panel Tie Bar Brace Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Front Floor Console Extension Panel Replacement
1	Instrument Panel Tie Bar Brace Fastener (Qty: 2) CAUTION: Refer to:Fastener Caution Tighten  22 N.m (16 lb ft)
2	Instrument Panel Tie Bar Brace
