Steering Wheel Spoke Lower Cover Replacement

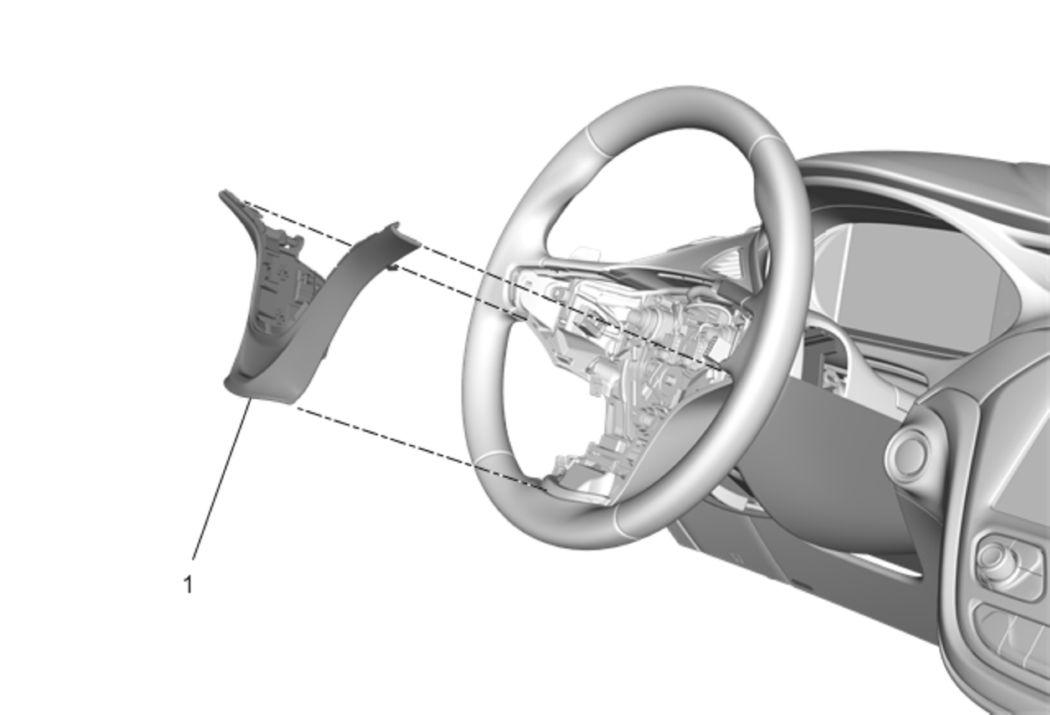

Fig 1: Steering Wheel Spoke Lower Cover
GM4539446Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Steering Wheel Airbag Replacement
  2. Steering Wheel Spoke Cover Replacement
1 Steering Wheel Spoke Lower Cover

Procedure

  1. Use the appropriate trim tool to release the steering wheel spoke lower cover from the steering wheel.
  2. Disconnect the electrical connectors.
  3. Transfer components as necessary.
