Steering Wheel Spoke Cover Replacement

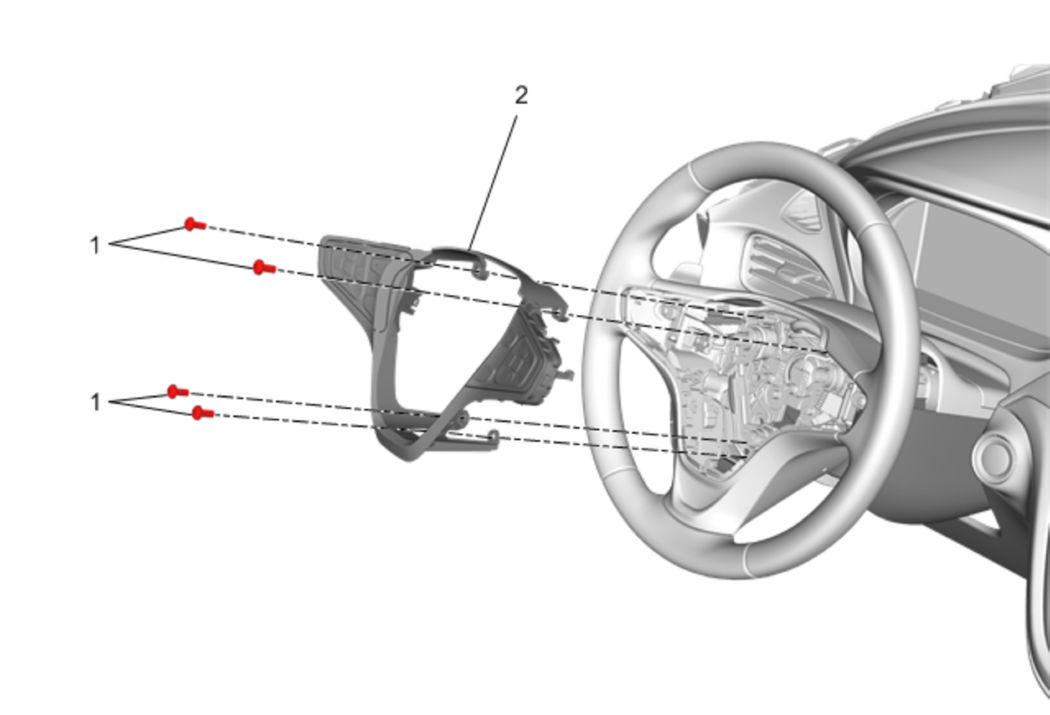

Fig 1: Steering Wheel Spoke Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement
1	Steering Wheel Spoke Cover Bolt
2	Steering Wheel Spoke Cover Procedure Use the appropriate trim tool to release the steering wheel spoke cover from the steering wheel. Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Steering Wheel Spoke Cover Bolt

Steering Wheel Spoke Cover

Procedure

Use the appropriate trim tool to release the steering wheel spoke cover from the steering wheel.
Disconnect the electrical connectors.
Transfer components as necessary.
