Hood Secondary Latch Release Cable Replacement

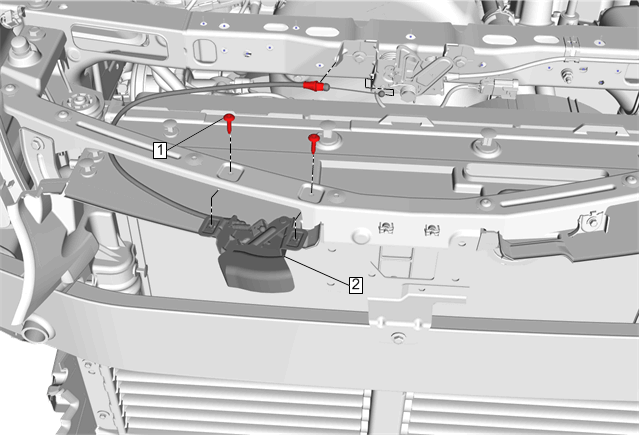

Fig 1: Hood Secondary Latch Release Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Removal and Installation
1	Hood Secondary Latch Release Cable Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Hood Secondary Latch Release Cable Procedure Disconnect the release cable from the hood primary latch. Align the hood secondary latch release cable latch if necessary.

Callout

Component Name

Hood Secondary Latch Release Cable Bolts (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Hood Secondary Latch Release Cable

Procedure
