Front Bumper Fascia Removal and Installation

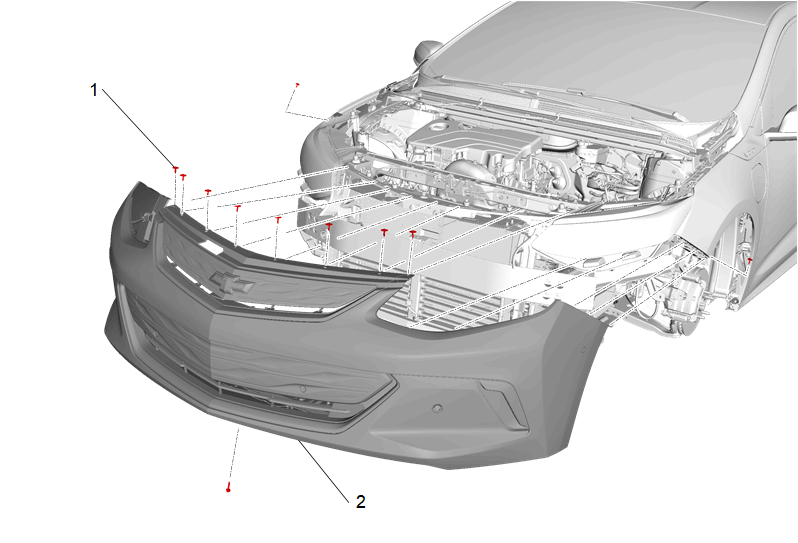

Fig 1: Front Bumper Fascia
GM4139149Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Front Compartment Splash Shield Replacement
  2. Front Wheelhouse Liner Replacement (Left Side)Front Wheelhouse Liner Replacement (Right Side)
1 Front Bumper Fascia Bolt (Qty: 8)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Bumper Fascia

Procedure

  1. Carefully push a small nylon wedge between the fascia and the front fascia retainers. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia retainers of the fender.
  2. Disconnect the electrical connector.
  3. Transfer components as necessary.
