Body Harness Routing - Engine Compartment Top

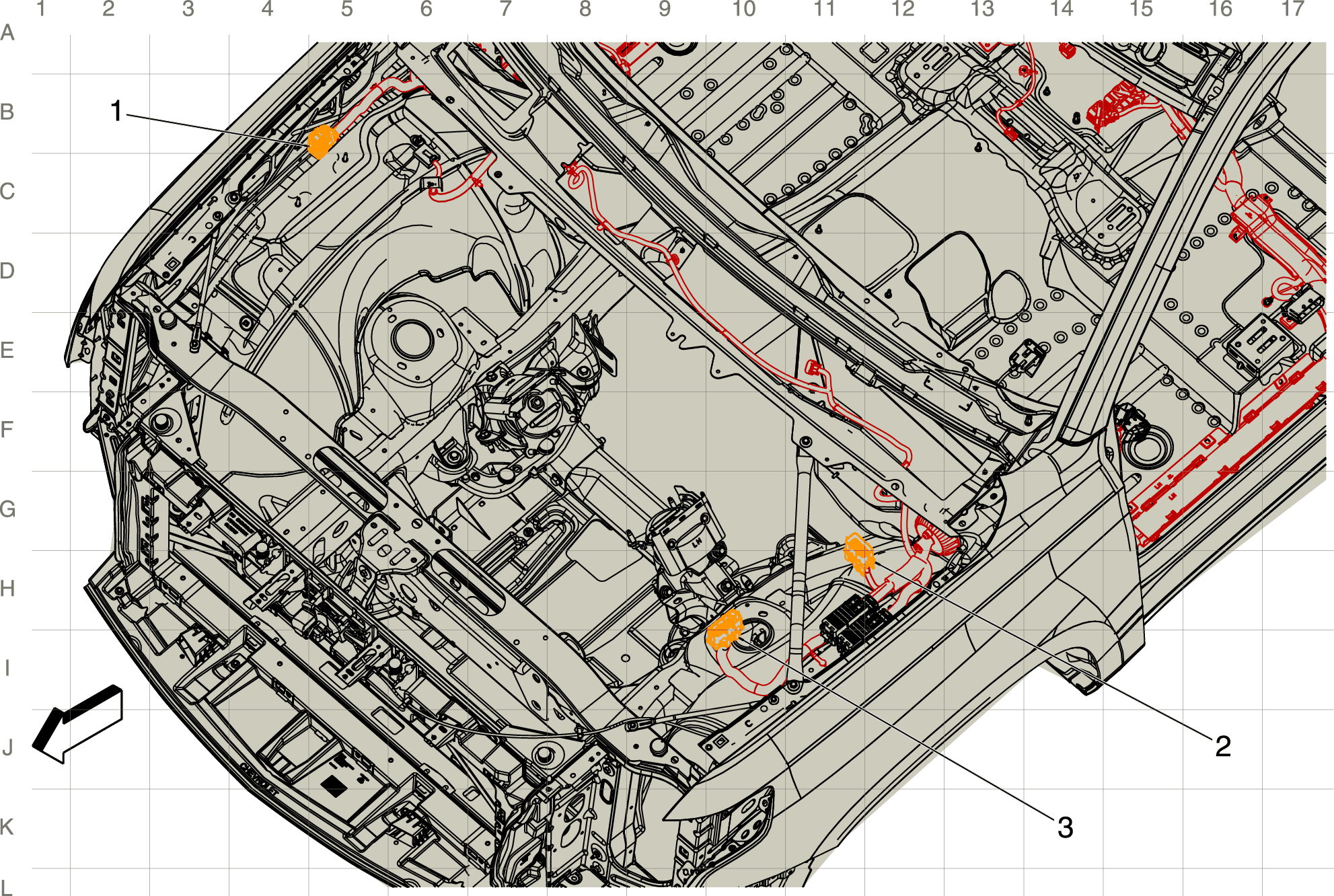

Fig 1: Body Harness Routing - Engine Compartment Top
GM3747544Courtesy of GENERAL MOTORS COMPANY
Items
1: X150 X150 Body Harness to Forward Lamp Harness
2: X185 X185 Chassis Harness to Body Harness
3: X115 X115 Engine Harness to Body Harness
