X150 Body Harness to Forward Lamp Harness

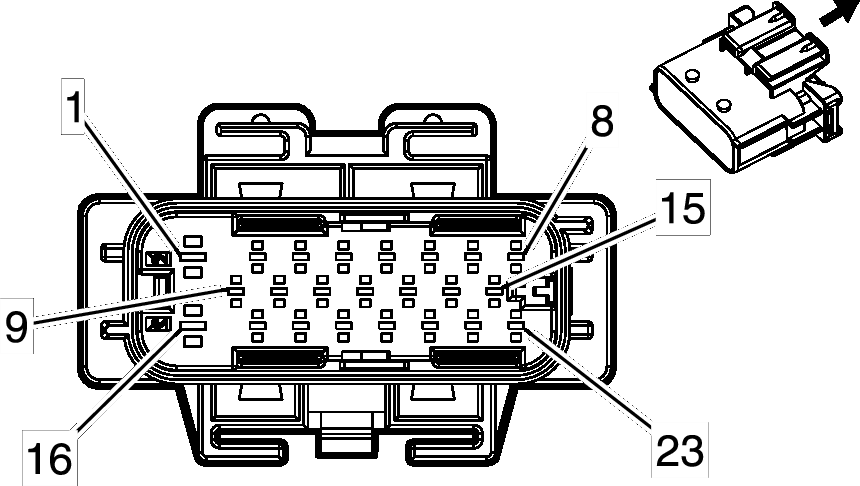

Connector Part Information Harness Type: Body OEM Connector: 13674800 Service Connector: 19300480 Description: 23-Way F 1.5 DSQ, 2.8 AST Series, Sealed (BK)	Connector Part Information Harness Type: Forward Lamp OEM Connector: 13750011 Service Connector: 19301797 Description: 23-Way M 1.5, 2.8 Series, Sealed (BK)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575389	J-35616-4A (PU)	J-38125-36	Not Available	Not Available	Not Available	Not Available
II	13576369	J-35616-14 (GN)	J-38125-560	Not Available	Not Available	Not Available	Not Available
III	13578884	J-35616-14 (GN)	J-38125-560	Not Available	Not Available	Not Available	Not Available
IV	13580830	J-35616-4A (PU)	J-38125-36	Not Available	Not Available	Not Available	Not Available
V	13575380	J-35616-3 (GY)	J-38125-560	Not Available	Not Available	Not Available	Not Available
VI	13581368	J-35616-5 (PU)	J-38125-36	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.75 0.35	RD/L-GN BK/D-BU	3140 61	IV I	K59 L96	Battery Positive Voltage Outside Ambient Temperature Sensor Low Reference	1	0.5 0.5	RD/L-GN BK/D-BU	3140 61	VI	K59 L96
2	0.35	WH/BN	6201	II	UVH	Camera Control	2	0.5	WH/BN	6201	V	UVH
3	0.35	BK/WH	2551	II	UVH	Signal Ground	3	0.5	BK/WH	2551	V	UVH
4	0.5	YE/GY	5216	II	UD5	Front Parking Left Mid Sensor	4	0.5	YE/GY	5216	V	UD5
5	0.5	WH/GY	5217	II	UD5	Front Parking Right Corner Sensor	5	0.5	WH/GY	5217	V	UD5
6	0.5	VT/GY	5218	II	UD5	Front Parking Right Mid Sensor	6	0.5	VT/GY	5218	V	UD5
7	0.5	BK/D-BU	5214	II	UD5	Front Parking Sensor Low Reference	7	0.5	BK/D-BU	5214	V	UD5
8	0.5	VT/WH	5215	II	UD5	Front Parking Left Corner Sensor	8	0.5	VT/WH	5215	V	UD5
9	0.5	D-BU/VT	3813	II	UGN+Z75	High Speed GMLAN Serial Data (+) (4)	9	0.5	D-BU/VT	3813	V	UGN+Z75
10	0.5	WH	3811	II	UGN+Z75	High Speed GMLAN Serial Data (-) (4)	10	0.5	WH	3811	V	UGN+Z75
11	0.35	OG/L-GN	1409	II	-	Right Front Discriminating Sensor Signal	11	0.5	OG/L-GN	1409	V	-
12	0.35	BK/OG	5600	II	-	Right Front Discriminating Sensor Low Reference	12	0.5	BK/OG	5600	V	-
13	0.35	GY/VT	3808	II	UGN	Front Object Sensor Control (2)	13	0.5	GY/VT	3808	V	UGN
14	0.35	VT	185	II	-	Low Washer Fluid Indicator Control	14	0.5	VT	185	V	-
15	0.5	YE/VT	5213	II	UD5	Front Parking Left/Right/Mid Sensor	15	0.5	YE/VT	5213	V	UD5
16	0.35	D-BU/GY	636	I	L96	Outside Ambient Air Temperature Sensor Signal	16	0.5	D-BU/GY	636	VI	L96
17	0.35	D-BU	3373	II	UVH	Auxiliary Video High Signal (2)	17	0.5	D-BU	3373	V	UVH
18	0.75 0.35	D-BU/L-GN GY	6841 3372	III II	6J7 UVH	Rear Lamp Flasher Signal Auxiliary Video Low Signal (2)	18	0.75 0.5	D-BU/L-GN GY	6841 3372	V	6J7 UVH
19	0.75 0.35	L-GN BK	6820 3371	III II	6J7 UVH	Exterior Lamp Flasher Signal Video Low Reference (2)	19	0.75 0.5	L-GN BK	6820 3371	V	6J7 UVH
20	0.35	OG/YE	354	II	-	Left Front Discriminating Sensor Signal	20	0.5	OG/YE	354	V	-
21	0.35	BK/OG	5045	II	-	Left Front Discriminating Sensor Low Reference	21	0.5	BK/OG	5045	V	-
22	-	-	-	-	-	Not Occupied	22	-	-	-	-	-
23	0.5	BN/L-GN	109	II	-	Hood Ajar Switch Signal	23	0.5	BN/L-GN	109	V	-
