Sunroof Actuator Motor Replacement

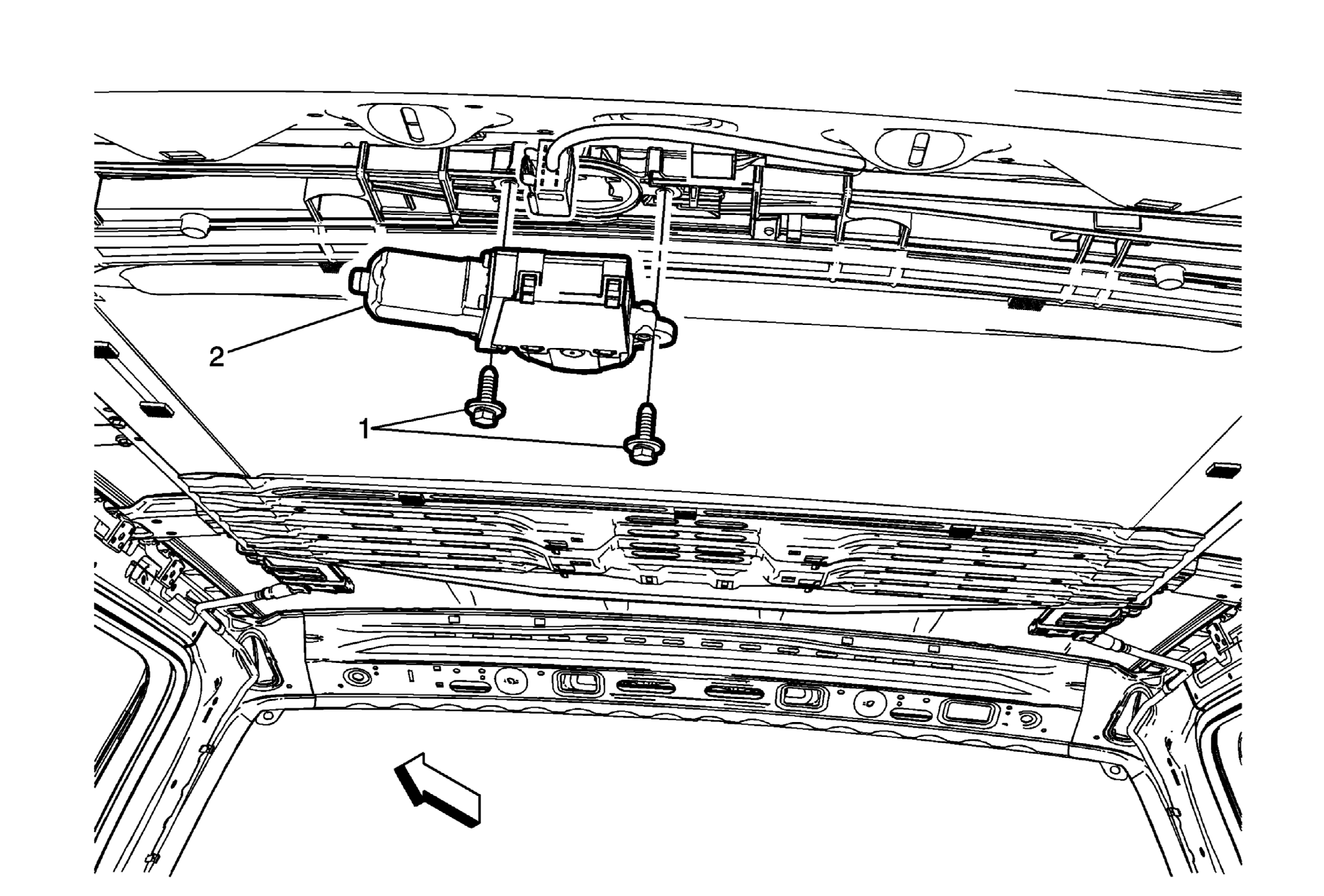

Fig 1: Sunroof Actuator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the sunroof module bracket. Refer to Sunroof Module Bracket Replacement .
1	Sunroof Actuator/Motor Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Sunroof Actuator/Motor Procedure Disconnect the electrical connector. Pull downward to disengage the actuator/motor from the sunroof module. It will be necessary to reteach the motor. Refer to Sunroof Motor/Actuator Initialization/Teach Process .

Callout

Component Name

Preliminary Procedure
Remove the sunroof module bracket. Refer to Sunroof Module Bracket Replacement .

Sunroof Actuator/Motor Bolts (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Sunroof Actuator/Motor

Procedure

Disconnect the electrical connector.
Pull downward to disengage the actuator/motor from the sunroof module.
It will be necessary to reteach the motor. Refer to Sunroof Motor/Actuator Initialization/Teach Process .
