Sunroof Module Bracket Replacement

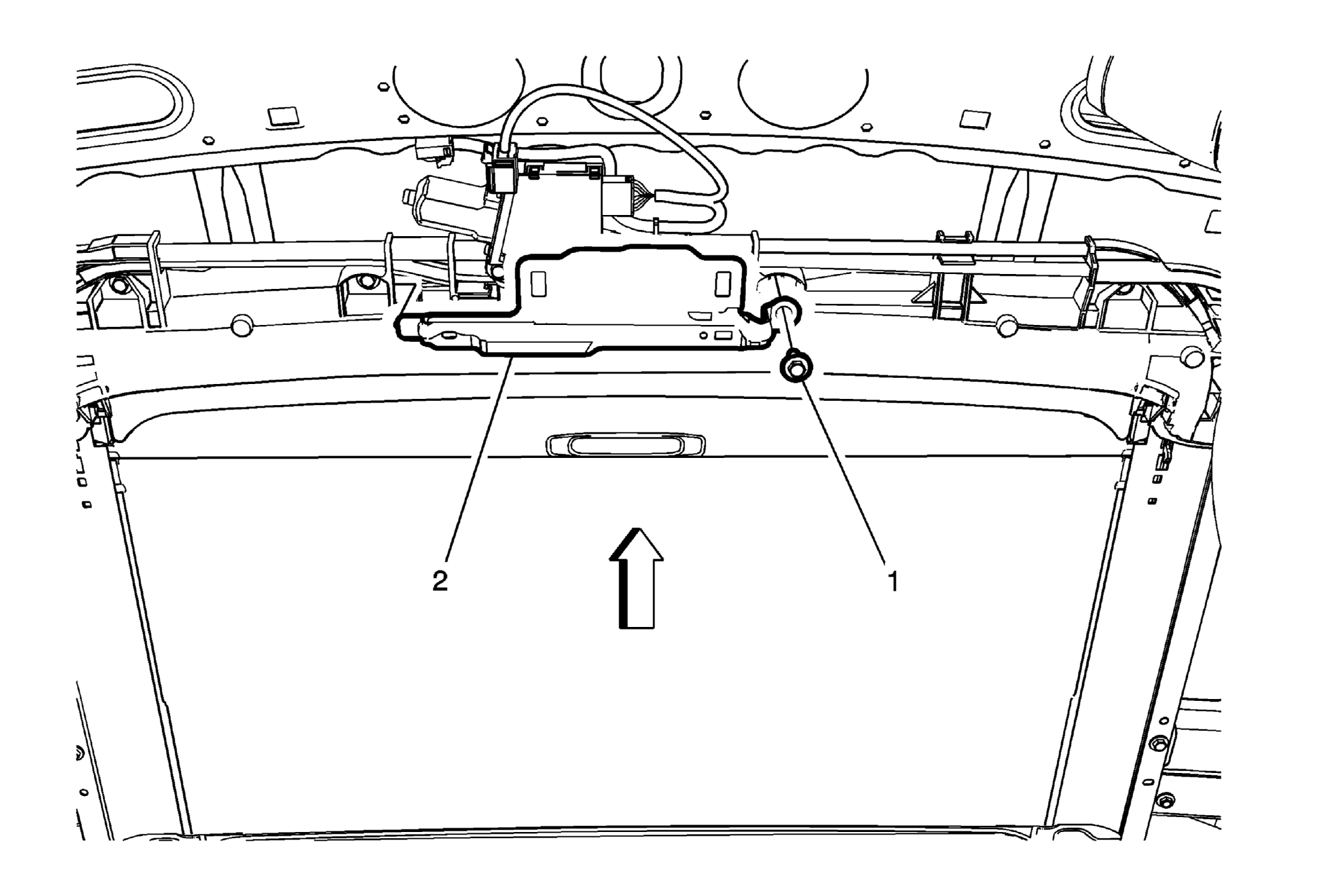

Fig 1: Sunroof Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Sunroof Module Bracket Screw CAUTION: Refer to Fastener Caution . Procedure Remove the left side screw from the bracket. Tighten 5 N.m (44 lb in)
2	Sunroof Module Bracket Procedure Carefully swing the bracket downward to release the right side from the module.
