Rear Seat Cushion Inner Panel Replacement

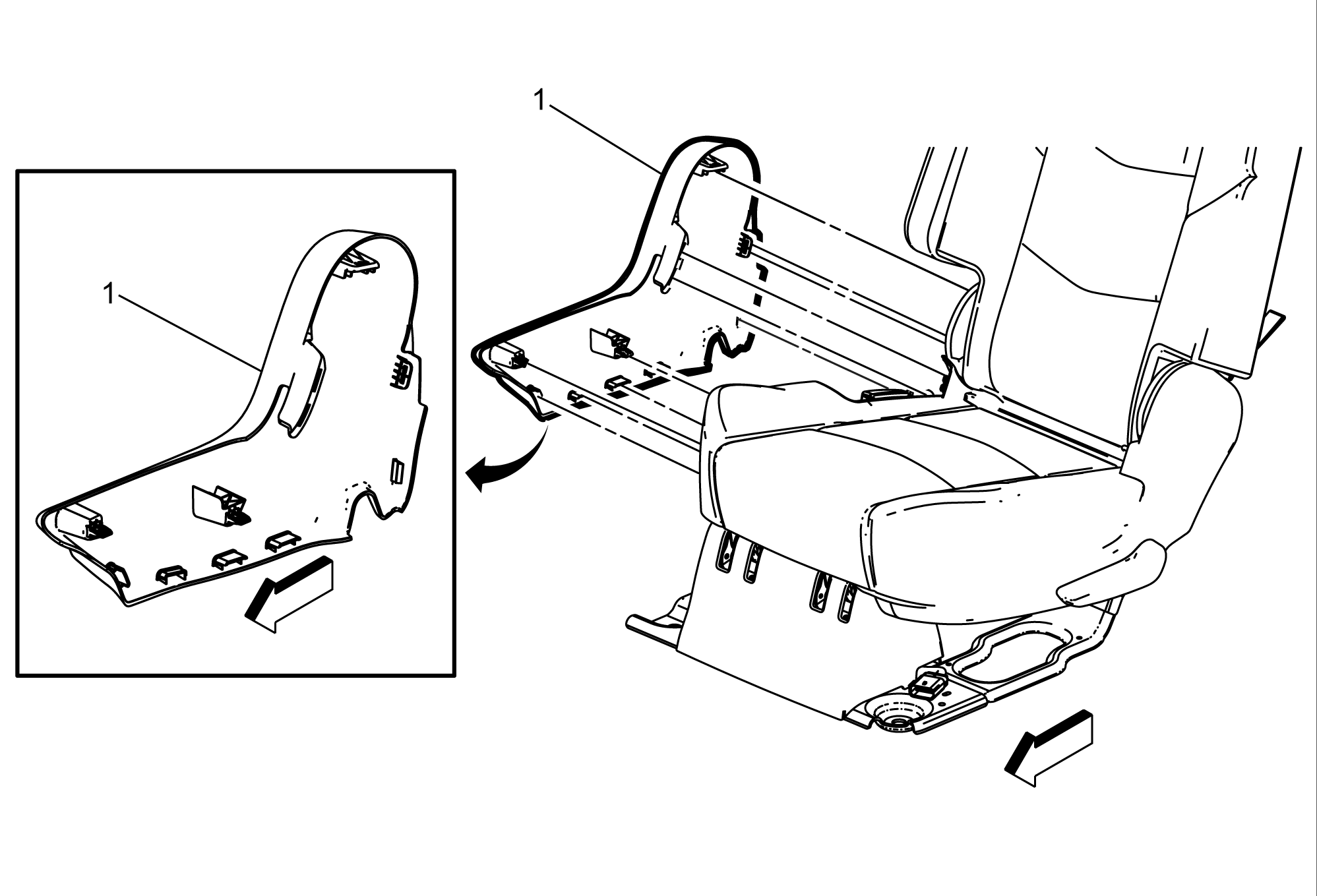

Fig 1: Rear Seat Cushion Inner Panel

GM3640597

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove rear seat, if required. Refer to Rear Seat Removal and Installation (60/40 Bench) Rear Seat Removal and Installation (Bucket) .

NOTE:

The bench rear seat must be removed to gain access to the 60% and 40% seat cushion inner panel.

1

Rear Seat Cushion Inner Trim Panel

Procedure

Disengage the retainer two tabs that attach inner trim panel to the hinge finish cover with a suitable flat-bladed tool.
Disengage the rear portion of the trim panel first by pulling outward at the retainer clip locations.
Disengage the front portion of the trim panel first by pulling outward at the retainer clip locations.
Remove the inner trim panel by gently pulling the trim panel outboard off the recliner bracket and seat frame.
