Rear Seat Hinge Finish Cover Replacement

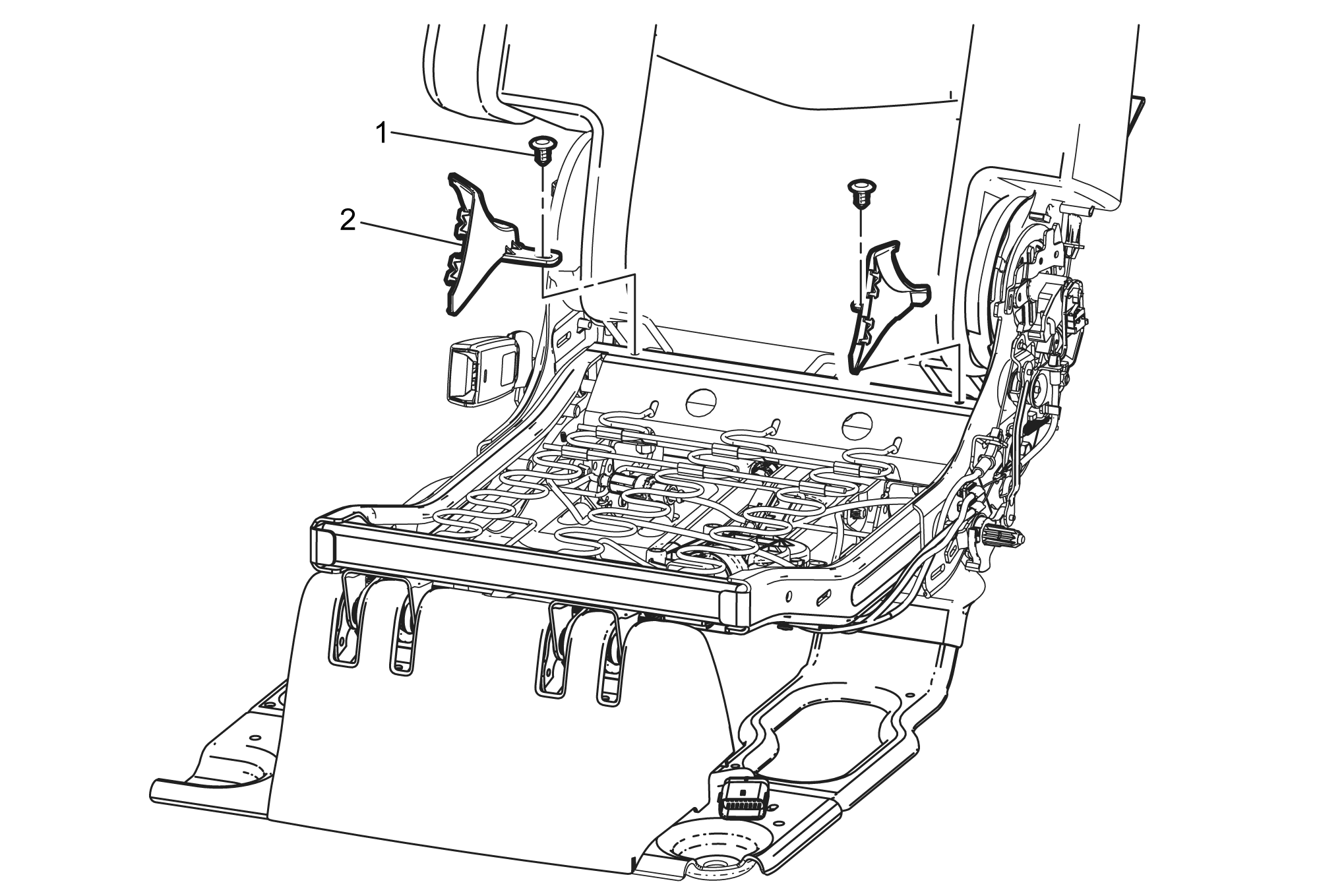

Fig 1: Rear Seat Hinge Finish Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion trim panel (bucket). Refer to Rear Seat Cushion Trim Panel Replacement (Bucket) .
1	Rear Seat Hinge Finish Cover Retainer Procedure Disengage the seat cushion cover j-channel from the seat cushion frame. Pull upward slightly on the rear seat cushion cover and pad to gain access to the retainers. NOTE: The seat cushion cover and pad does not need to be removed for the removal of the hinge finish cover.
2	Rear Seat Hinge Finish Cover CAUTION: Do not twist the cover during removal. Twisting the cover may cause the component to break. Procedure Carefully pull forward to release the hinge finish cover from the seat assembly.

Callout

Component Name

Preliminary Procedure
Remove the rear seat cushion trim panel (bucket). Refer to Rear Seat Cushion Trim Panel Replacement (Bucket) .

Rear Seat Hinge Finish Cover Retainer

Procedure

Disengage the seat cushion cover j-channel from the seat cushion frame.
Pull upward slightly on the rear seat cushion cover and pad to gain access to the retainers.

NOTE:

The seat cushion cover and pad does not need to be removed for the removal of the hinge finish cover.

Rear Seat Hinge Finish Cover

CAUTION:

Do not twist the cover during removal. Twisting the cover may cause the component to break.

Procedure
Carefully pull forward to release the hinge finish cover from the seat assembly.
