Rear Seat Back Cushion Frame Replacement (40%)

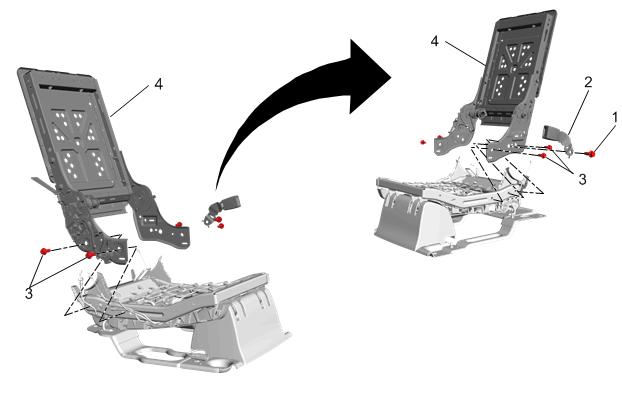

Fig 1: Rear Seat Back Cushion Frame (40%)
GM3970000Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove rear seat. Refer to Rear Seat Removal and Installation (60/40 Bench)
  2. Remove rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (60/40 Bench)
  3. Remove rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement (40%)
1 Rear Seat Belt Buckle Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
2 Rear Seat Belt Buckle
3 Rear Seat Back Cushion Frame Fastener (Qty: 4)
CAUTION:

Refer to Fastener Caution .


Tighten
55 N.m (41 lb ft)
4 Rear Seat Back Cushion Frame

Procedure

  1. Disconnect the recliner cables from the recliners.
  2. Disconnect all electrical connectors.
  3. Transfer components as necessary.
