Driver or Passenger Seat Lumbar Support Replacement (22-Way Power)

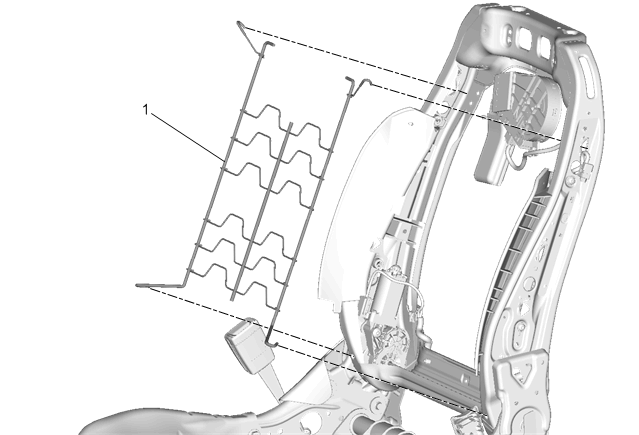

Fig 1: Driver or Passenger Seat Lumbar Support (22-Way Power)
GM3965885Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Refer to Front Seat Back Lumbar Bladder Replacement (22-Way Power)
1 Front Seat Lumbar Support

Procedure

  1. Pull outward at the bottom of the seat to release the bottom support wires.
  2. Disengage the side support wires from the seat back frame.
