Front Seat Back Lumbar Bladder Replacement (22-Way Power)

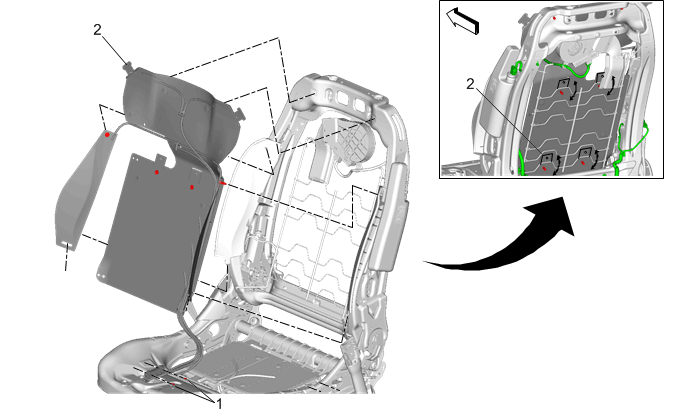

Fig 1: Front Seat Back Lumbar Bladder (22-Way Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Driver or Passenger Seat Back Cover and Pad Replacement (22-Way Power)
1	Front Seat Lumbar Support Bladder Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 0.6 N.m (6 lb in)
2	Front Seat Lumbar Support Bladder NOTE: Not all of the retainers on the Lumbar Bladder need to be removed some only hold the bladder to the felt. These will stay attached. Procedure Disconnect the air supply hose assembly from the seat bolster memory module. Release the 4 tabs that fold over to attach the bladder assembly to the support wire.

Callout

Component Name

WARNING:

Front Seat Lumbar Support Bladder Screw (Qty: 2)

CAUTION:

Tighten
0.6 N.m (6 lb in)

Front Seat Lumbar Support Bladder

NOTE:

Not all of the retainers on the Lumbar Bladder need to be removed some only hold the bladder to the felt. These will stay attached.

Procedure

Disconnect the air supply hose assembly from the seat bolster memory module.
Release the 4 tabs that fold over to attach the bladder assembly to the support wire.
