Front Compartment Air Deflector Replacement

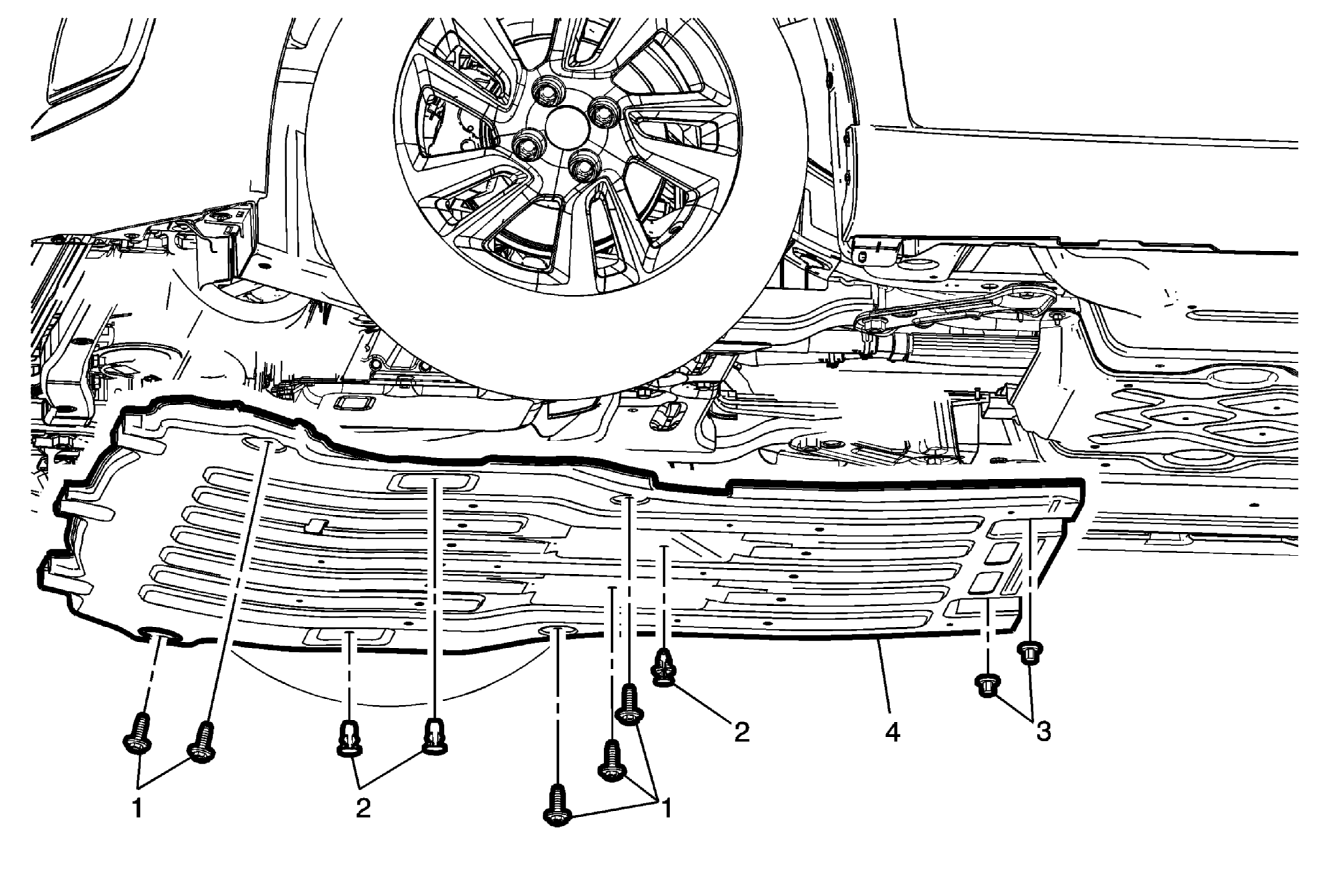

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear center 3 screws from the Front Bumper Fascia Opening Lower Cover. Refer to Front Bumper Fascia Air Deflector Replacement . |
|
| 1 | Front Compartment Air Deflector Bolts (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Front Compartment Air Deflector Plastic Retainers (Qty: 3) |
| 3 | Front Compartment Air Deflector Nuts (Qty: 2) Tighten 4 N.m (35 lb in) |
| 4 | Front Compartment Air Deflector |
