Front Bumper Fascia Air Deflector Replacement

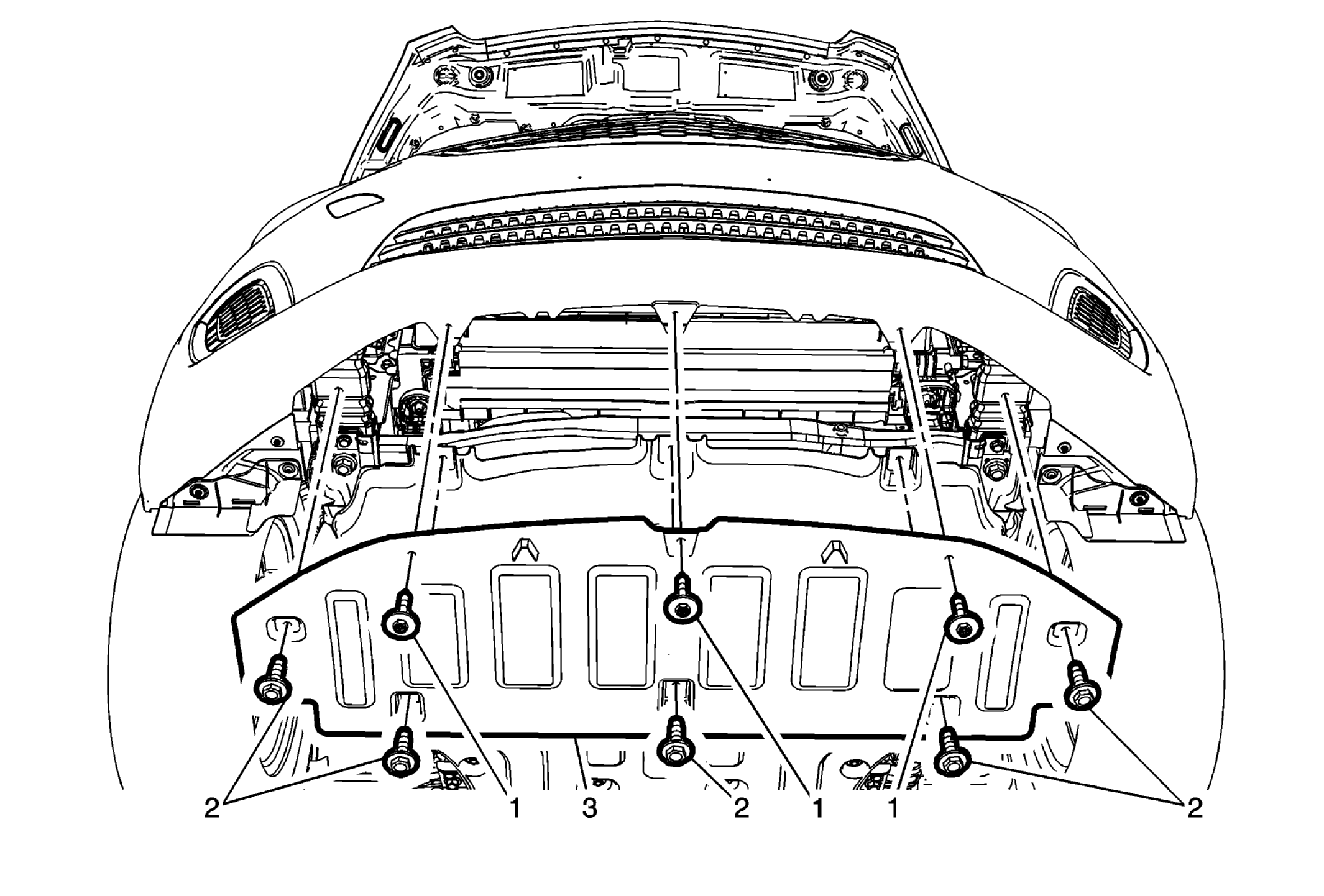

Fig 1: Front Bumper Fascia Air Deflector

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Bumper Fascia Opening Lower Cover Screw (Qty: 3) CAUTION: Refer to Fastener Caution .
2	Front Bumper Fascia Opening Lower Cover Bolt (Qty: 5) Tighten  9.5 N.m (84 lb in)
3	Front Bumper Fascia Opening Lower Cover
