Front Bumper Fascia Side Bracket Replacement

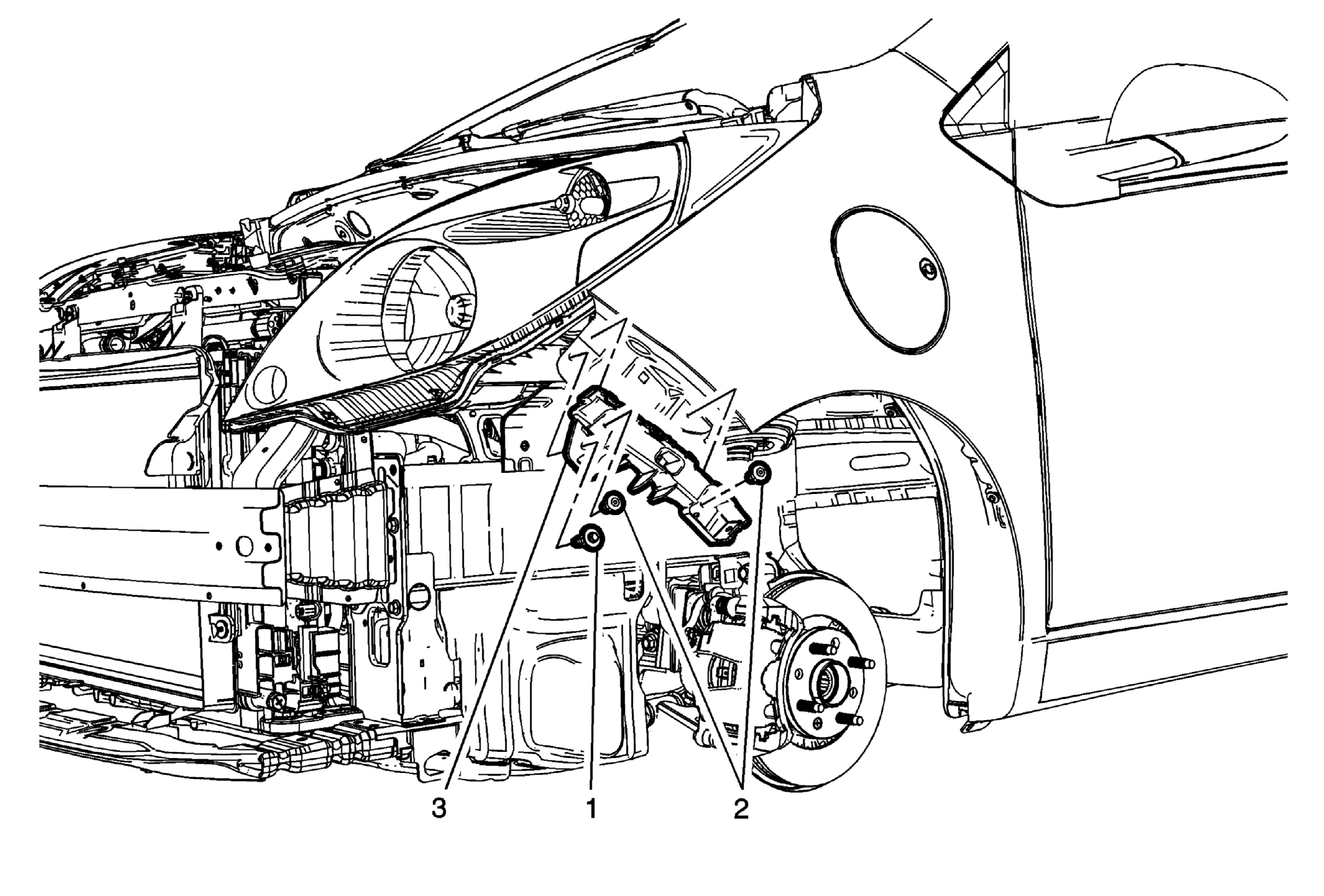

Fig 1: Front Bumper Fascia Side Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Eye Protection Warning . Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Headlamp Bolt CAUTION: Refer to Fastener Caution .
2	Front Bumper Fascia Guide Rivet (Qty: 2)
3	Front Bumper Fascia Guide
