Instrument Cluster Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

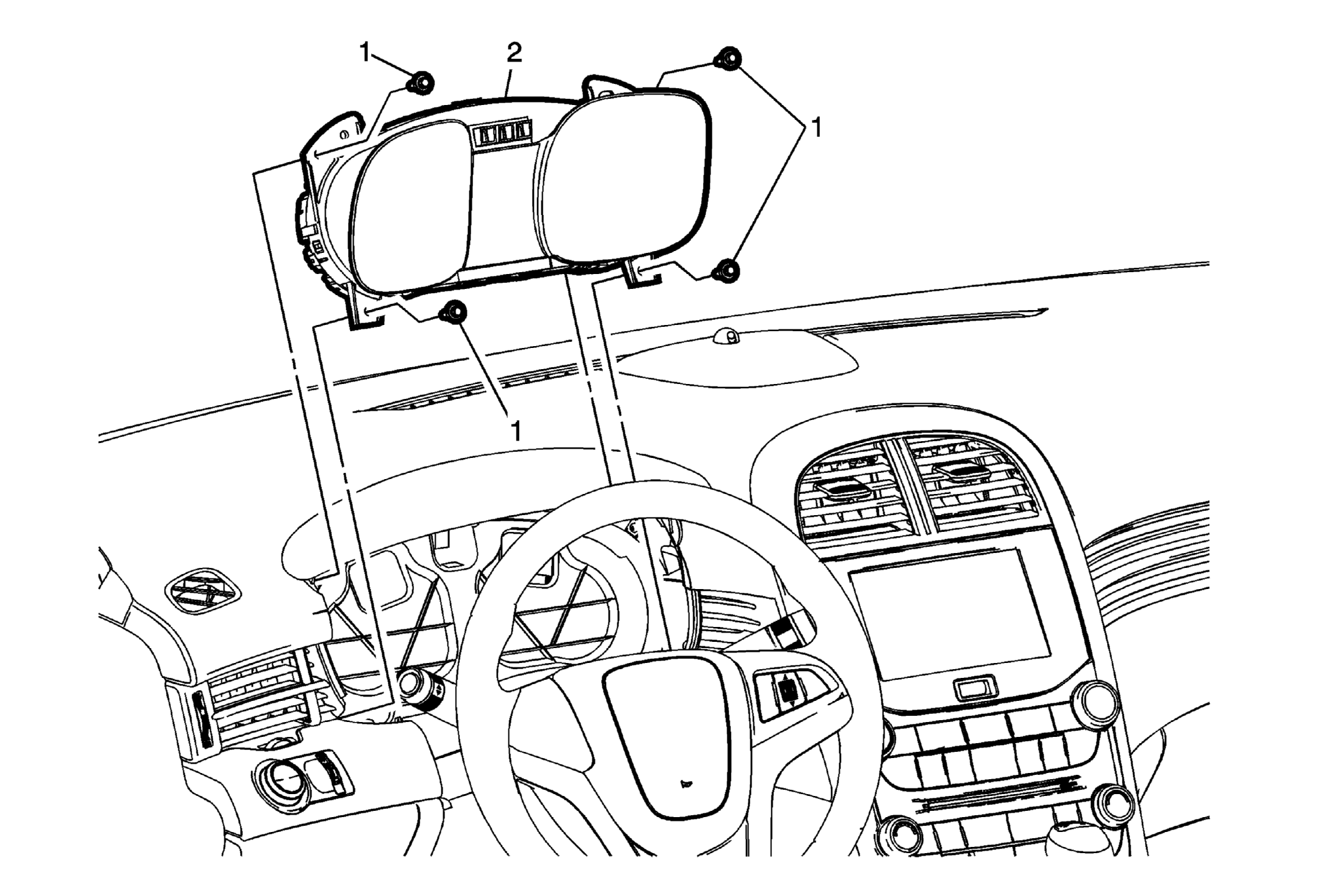

Fig 1: Instrument Cluster & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .
1	Instrument Cluster Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Cluster Assembly Procedures Disconnect the electrical connections. Refer to Control Module References for programming and set up information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .

Instrument Cluster Fasteners (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Instrument Cluster Assembly

Procedures

Disconnect the electrical connections.
Refer to Control Module References for programming and set up information.
