Rear Bumper Fascia Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

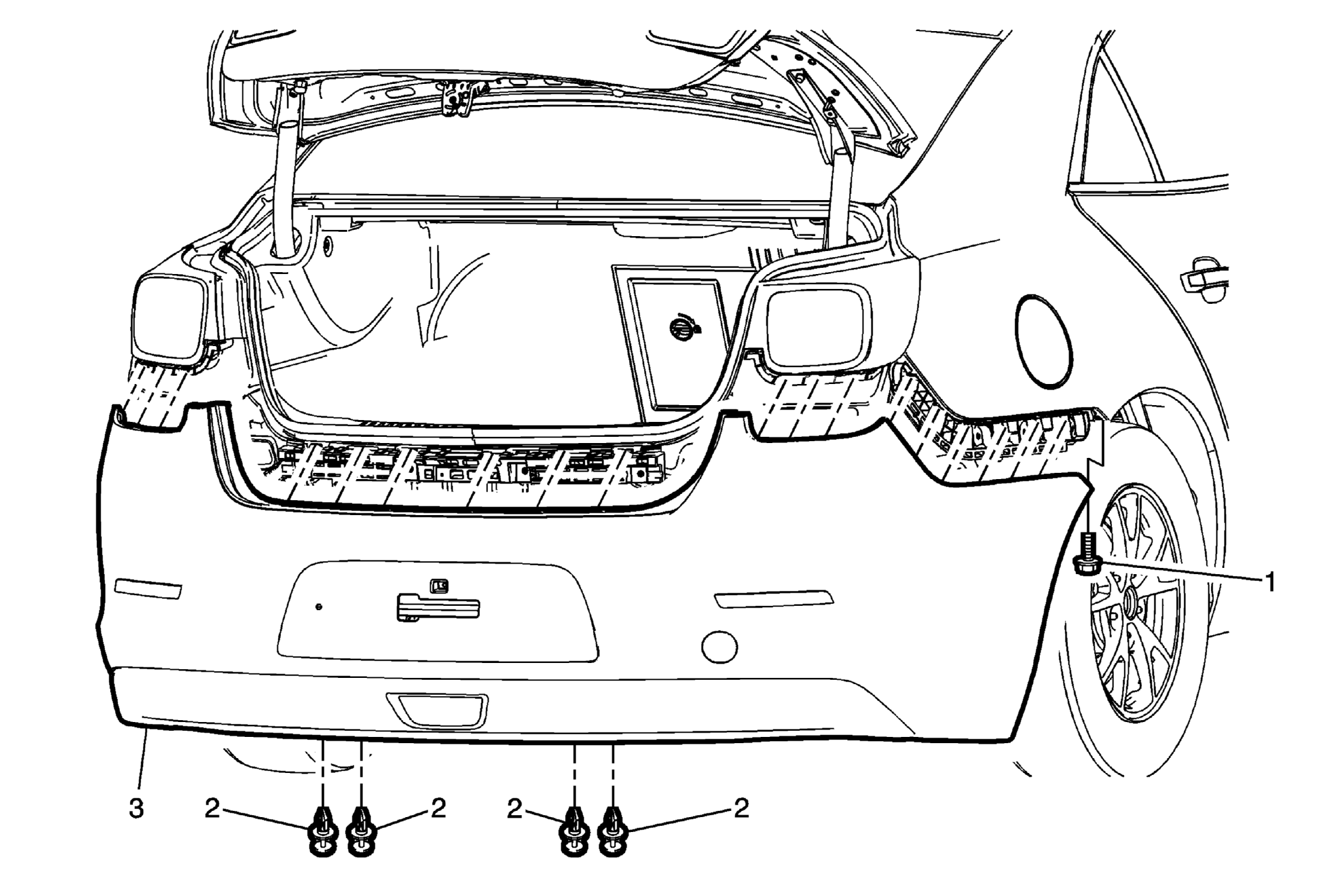

Fig 1: Rear Bumper Fascia & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the screws from the rear wheelhouse liners to the rear fascia. Refer to Rear Wheelhouse Liner Replacement .
1	Rear Bumper Fascia Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Rear Bumper Fascia Lower Push-In Retainer (Qty: 4)
3	Rear Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the lower side of rear tail lamp. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the lower side of rear tail lamp. Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide. Disconnect the electrical connectors. Transfer parts as needed. NOTE: Use care when removing rear bumper fascia and retainers from tail lamps to prevent damage to the tail lamps.
