Rear Wheelhouse Liner Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

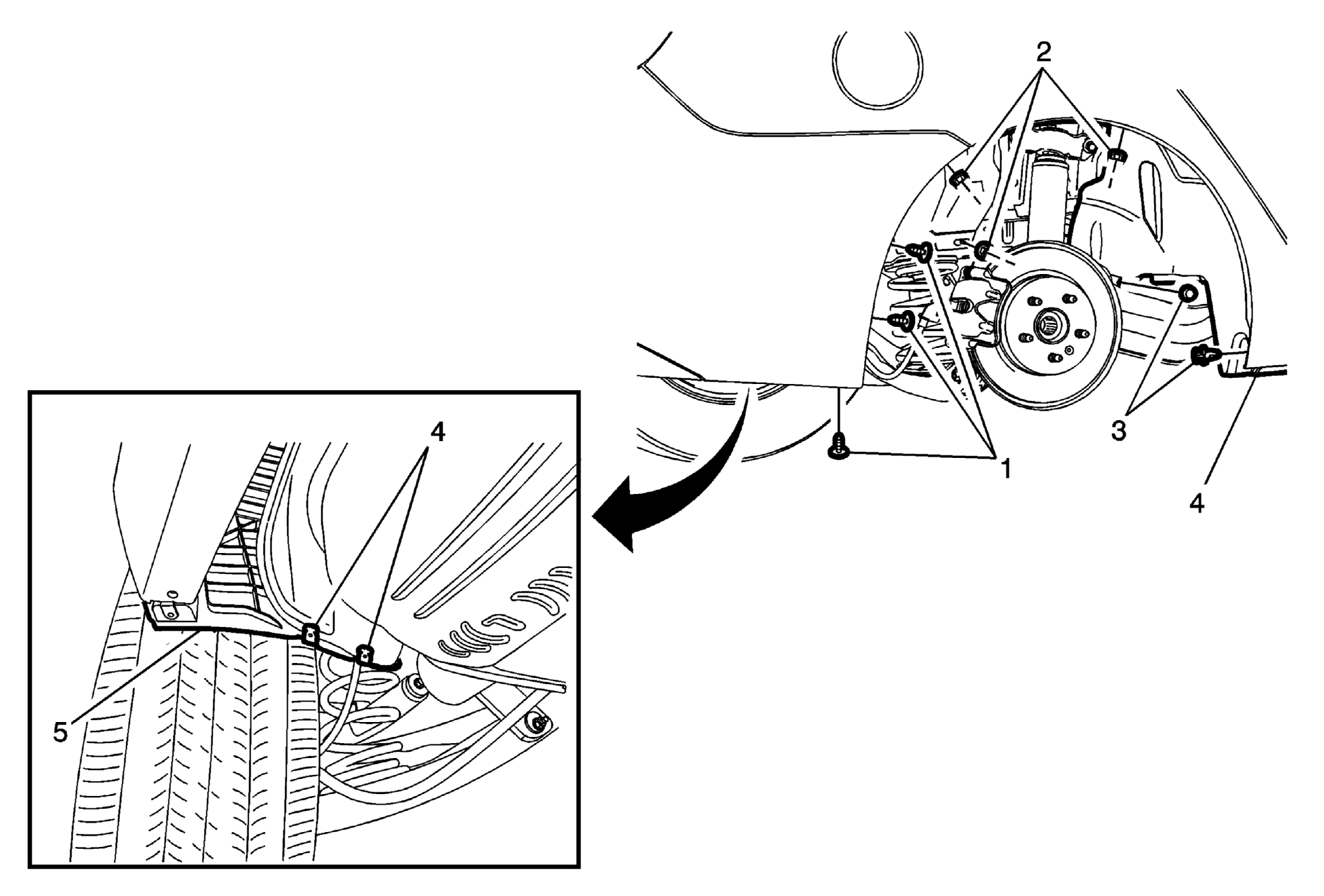

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Rear Wheelhouse Panel Liner Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tighten 3 N.m (27 lb in) |
| 2 | Rear Wheelhouse Panel Liner Nut (Qty: 3) Tighten 2 N.m (18 lb in) |
| 3 | Rear Wheelhouse Panel Liner Push-In Retainer (Qty: 2) |
| 4 | Heatshield Clamp, if equipped (Qty: 2) |
| 5 | Rear Wheelhouse Panel Liner |
